Documentation for XHTML™ 1.0 The Extensible HyperText Markup Language
Definition Type: Group
Name: block
Namespace: http://www.w3.org/1999/xhtml
Containing Schema: xhtml1-strict.xsd

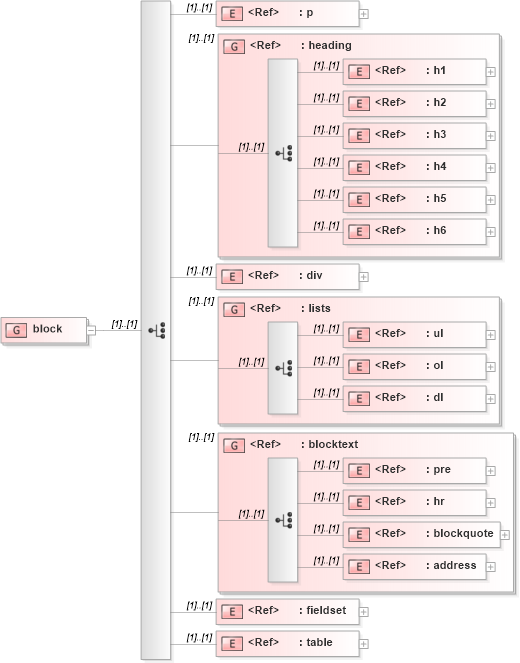

Collapse XSD Schema Diagram:
Drilldown into table in schema xhtml1-strict_xsd Drilldown into fieldset in schema xhtml1-strict_xsd Drilldown into address in schema xhtml1-strict_xsd Drilldown into blockquote in schema xhtml1-strict_xsd Drilldown into hr in schema xhtml1-strict_xsd Drilldown into pre in schema xhtml1-strict_xsd Drilldown into blocktext in schema xhtml1-strict_xsd Drilldown into dl in schema xhtml1-strict_xsd Drilldown into ol in schema xhtml1-strict_xsd Drilldown into ul in schema xhtml1-strict_xsd Drilldown into lists in schema xhtml1-strict_xsd Drilldown into div in schema xhtml1-strict_xsd Drilldown into h6 in schema xhtml1-strict_xsd Drilldown into h5 in schema xhtml1-strict_xsd Drilldown into h4 in schema xhtml1-strict_xsd Drilldown into h3 in schema xhtml1-strict_xsd Drilldown into h2 in schema xhtml1-strict_xsd Drilldown into h1 in schema xhtml1-strict_xsd Drilldown into heading in schema xhtml1-strict_xsd Drilldown into p in schema xhtml1-strict_xsdXSD Diagram of block in schema xhtml1-strict_xsd (XHTML™ 1.0 The Extensible HyperText Markup Language)
Collapse XSD Schema Code:
<xs:group name="block">
    <xs:choice>
        <xs:element ref="p" />
        <xs:group ref="heading" />
        <xs:element ref="div" />
        <xs:group ref="lists" />
        <xs:group ref="blocktext" />
        <xs:element ref="fieldset" />
        <xs:element ref="table" />
    </xs:choice>
</xs:group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
p nsA:p (1) (1)
h1 nsA:h1 (1) (1)
h2 nsA:h2 (1) (1)
h3 nsA:h3 (1) (1)
h4 nsA:h4 (1) (1)
h5 nsA:h5 (1) (1)
h6 nsA:h6 (1) (1)
div nsA:div (1) (1)
ul nsA:ul (1) (1)
ol nsA:ol (1) (1)
dl nsA:dl (1) (1)
pre nsA:pre (1) (1)
hr nsA:hr (1) (1)
blockquote nsA:blockquote (1) (1)
address nsA:address (1) (1)
fieldset nsA:fieldset (1) (1)
table nsA:table (1) (1)
<xs:group> nsA:heading (1) (1)
<xs:group> nsA:lists (1) (1)
<xs:group> nsA:blocktext (1) (1)
