Documentation for XSL Transformations
Definition Type: Element
Name: character-map
Namespace: http://www.w3.org/1999/XSL/Transform
Type: xsl:element-only-versioned-element-type
Containing Schema: schema-for-xslt20.xsd
Abstract

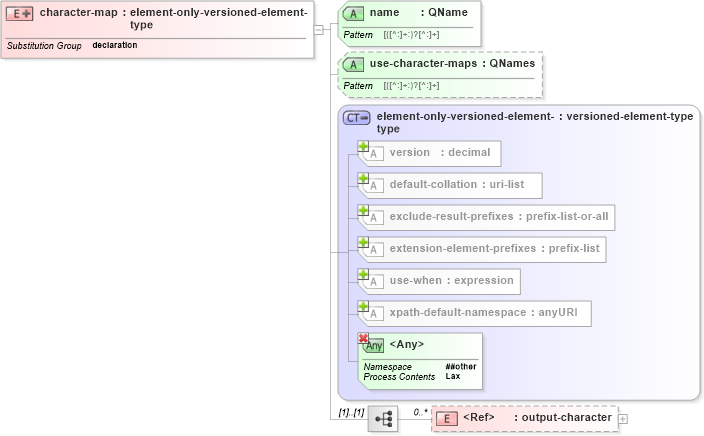

Collapse XSD Schema Diagram:
Drilldown into output-character in schema schema-for-xslt20_xsd Drilldown into xpath-default-namespace in schema schema-for-xslt20_xsd Drilldown into use-when in schema schema-for-xslt20_xsd Drilldown into extension-element-prefixes in schema schema-for-xslt20_xsd Drilldown into exclude-result-prefixes in schema schema-for-xslt20_xsd Drilldown into default-collation in schema schema-for-xslt20_xsd Drilldown into version in schema schema-for-xslt20_xsd Drilldown into element-only-versioned-element-type in schema schema-for-xslt20_xsd Drilldown into use-character-maps in schema schema-for-xslt20_xsd Drilldown into name in schema schema-for-xslt20_xsdXSD Diagram of character-map in schema schema-for-xslt20_xsd (XSL Transformations)
Collapse XSD Schema Code:
<xs:element name="character-map" substitutionGroup="xsl:declaration">
    <xs:complexType>
        <xs:complexContent>
            <xs:extension base="xsl:element-only-versioned-element-type">
                <xs:sequence>
                    <xs:element ref="xsl:output-character" minOccurs="0" maxOccurs="unbounded" />
                </xs:sequence>
                <xs:attribute name="name" type="xsl:QName" use="required" />
                <xs:attribute name="use-character-maps" type="xsl:QNames" default="" />
            </xs:extension>
        </xs:complexContent>
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
output-character xsl:output-character 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
default-collation xsl:default-collation (Optional)
exclude-result-prefixes xsl:exclude-result-prefixes (Optional)
extension-element-prefixes xsl:extension-element-prefixes (Optional)
use-when xsl:use-when (Optional)
xpath-default-namespace xsl:xpath-default-namespace (Optional)
version xsl:version Optional
name xsl:name Required
use-character-maps xsl:use-character-maps (Optional)
<anyAttribute> Allowed namespace: '##other'
<anyAttribute> Allowed namespace: '##other'
Collapse Derivation Tree:
Collapse References:
xsl:declaration
