Documentation for OGC Web Feature Service
Definition Type: ComplexType
Name: AbstractAdhocQueryExpressionType
Namespace: http://www.opengis.net/fes/2.0
Type: fes:AbstractQueryExpressionType
Containing Schema: query.xsd
Abstract True

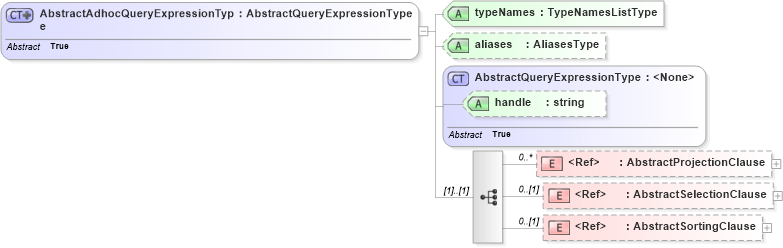

Collapse XSD Schema Diagram:
Drilldown into AbstractSortingClause in schema query_xsd Drilldown into AbstractSelectionClause in schema query_xsd Drilldown into AbstractProjectionClause in schema query_xsd Drilldown into handle in schema query_xsd Drilldown into AbstractQueryExpressionType in schema query_xsd Drilldown into aliases in schema query_xsd Drilldown into typeNames in schema query_xsdXSD Diagram of AbstractAdhocQueryExpressionType in schema query_xsd (OGC Web Feature Service)
Collapse XSD Schema Code:
<xsd:complexType name="AbstractAdhocQueryExpressionType" abstract="true">
    <xsd:complexContent>
        <xsd:extension base="fes:AbstractQueryExpressionType">
            <xsd:sequence>
                <xsd:element ref="fes:AbstractProjectionClause" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="fes:AbstractSelectionClause" minOccurs="0" />
                <xsd:element ref="fes:AbstractSortingClause" minOccurs="0" />
            </xsd:sequence>
            <xsd:attribute name="typeNames" type="fes:TypeNamesListType" use="required" />
            <xsd:attribute name="aliases" type="fes:AliasesType" />
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
AbstractProjectionClause fes:AbstractProjectionClause 0 unbounded
AbstractSelectionClause fes:AbstractSelectionClause 0 (1)
AbstractSortingClause fes:AbstractSortingClause 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
handle fes:handle (Optional)
typeNames fes:typeNames Required
aliases fes:aliases (Optional)
Collapse Derivation Tree:
Collapse References:
fes:AbstractAdhocQueryExpression, wfs:QueryType
