Documentation for OGC Web Feature Service
Definition Type: ComplexType
Name: AvailableFunctionType
Namespace: http://www.opengis.net/fes/2.0
Containing Schema: filterCapabilities.xsd
Abstract

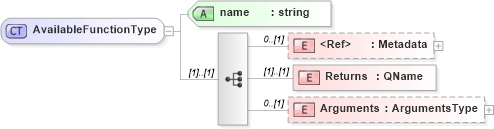

Collapse XSD Schema Diagram:
Drilldown into Arguments in schema filtercapabilities_xsd Drilldown into Returns in schema filtercapabilities_xsd Drilldown into Metadata in schema owscommon_xsd Drilldown into name in schema filtercapabilities_xsdXSD Diagram of AvailableFunctionType in schema filtercapabilities_xsd (OGC Web Feature Service)
Collapse XSD Schema Code:
<xsd:complexType name="AvailableFunctionType">
    <xsd:sequence>
        <xsd:element ref="ows:Metadata" minOccurs="0" />
        <xsd:element name="Returns" type="xsd:QName" />
        <xsd:element name="Arguments" type="fes:ArgumentsType" minOccurs="0" />
    </xsd:sequence>
    <xsd:attribute name="name" type="xsd:string" use="required" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Metadata ows:Metadata 0 (1)
Returns fes:Returns (1) (1)
Arguments fes:Arguments 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
name fes:name Required
Collapse Derivation Tree:
Collapse References:
fes:Function
