Documentation for OGC Web Feature Service
Definition Type: ComplexType
Name: BinaryComparisonOpType
Namespace: http://www.opengis.net/fes/2.0
Type: fes:ComparisonOpsType
Containing Schema: filter.xsd
Abstract
Collapse XSD Schema Diagram:

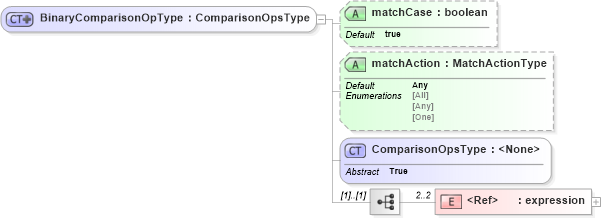

Drilldown into expression in schema expr_xsd Drilldown into ComparisonOpsType in schema filter_xsd Drilldown into matchAction in schema filter_xsd Drilldown into matchCase in schema filter_xsdXSD Diagram of BinaryComparisonOpType in schema filter_xsd (OGC Web Feature Service)
Collapse XSD Schema Code:
<xsd:complexType name="BinaryComparisonOpType">
    <xsd:complexContent>
        <xsd:extension base="fes:ComparisonOpsType">
            <xsd:sequence>
                <xsd:element ref="fes:expression" minOccurs="2" maxOccurs="2" />
            </xsd:sequence>
            <xsd:attribute name="matchCase" type="xsd:boolean" use="optional" default="true" />
            <xsd:attribute name="matchAction" type="fes:MatchActionType" use="optional" default="Any" />
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
expression fes:expression 2 2
Collapse Child Attributes:
Name Type Default Value Use
matchCase fes:matchCase true Optional
matchAction fes:matchAction Any Optional
Collapse Derivation Tree:
Collapse References:
fes:PropertyIsEqualTo, fes:PropertyIsGreaterThan, fes:PropertyIsGreaterThanOrEqualTo, fes:PropertyIsLessThan, fes:PropertyIsLessThanOrEqualTo, fes:PropertyIsNotEqualTo
