Documentation for OGC Web Feature Service
Definition Type: Element
Name: Constraint
Namespace: http://www.opengis.net/ows/1.1
Type: ows:DomainType
Containing Schema: owsOperationsMetadata.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract
Documentation:
Optional unordered list of valid domain constraints on non-parameter quantities that each apply to this server. The list of required and optional constraints shall be specified in the Implementation Specification for this service.

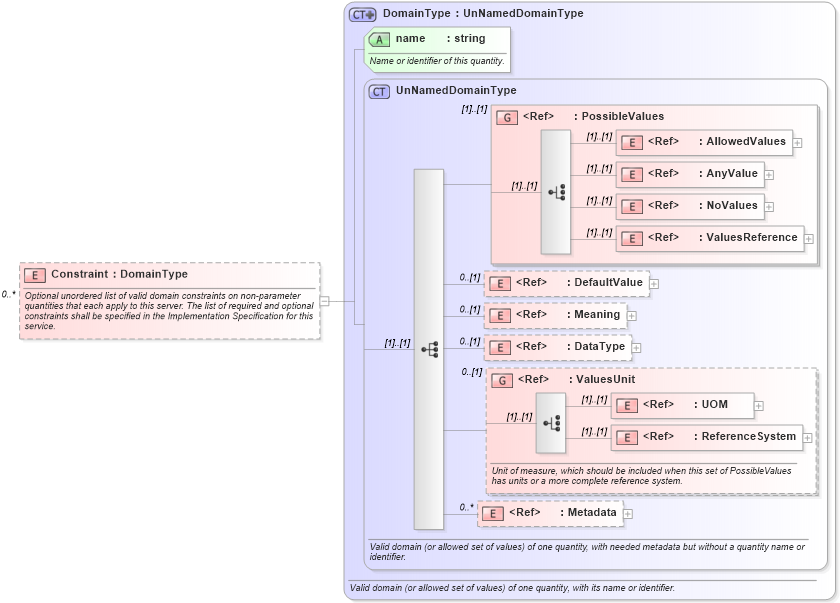

Collapse XSD Schema Diagram:
Drilldown into Metadata in schema owscommon_xsd Drilldown into ReferenceSystem in schema owsdomaintype_xsd Drilldown into UOM in schema owsdomaintype_xsd Drilldown into ValuesUnit in schema owsdomaintype_xsd Drilldown into DataType in schema owsdomaintype_xsd Drilldown into Meaning in schema owsdomaintype_xsd Drilldown into DefaultValue in schema owsdomaintype_xsd Drilldown into ValuesReference in schema owsdomaintype_xsd Drilldown into NoValues in schema owsdomaintype_xsd Drilldown into AnyValue in schema owsdomaintype_xsd Drilldown into AllowedValues in schema owsdomaintype_xsd Drilldown into PossibleValues in schema owsdomaintype_xsd Drilldown into UnNamedDomainType in schema owsdomaintype_xsd Drilldown into name in schema owsdomaintype_xsd Drilldown into DomainType in schema owsdomaintype_xsdXSD Diagram of Constraint in schema owsoperationsmetadata_xsd (OGC Web Feature Service)
Collapse XSD Schema Code:
<element name="Constraint" type="ows:DomainType" minOccurs="0" maxOccurs="unbounded">
    <annotation>
        <documentation>Optional unordered list of valid domain constraints on non-parameter quantities that each apply to this server. The list of required and optional constraints shall be specified in the Implementation Specification for this service. </documentation>
    </annotation>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
AllowedValues ows:AllowedValues (1) (1)
AnyValue ows:AnyValue (1) (1)
NoValues ows:NoValues (1) (1)
ValuesReference ows:ValuesReference (1) (1)
DefaultValue ows:DefaultValue 0 (1)
Meaning ows:Meaning 0 (1)
DataType ows:DataType 0 (1)
UOM ows:UOM (1) (1)
ReferenceSystem ows:ReferenceSystem (1) (1)
Metadata ows:Metadata 0 unbounded
<xs:group> ows:PossibleValues (1) (1)
<xs:group> ows:ValuesUnit 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
name ows:name Required
Collapse Derivation Tree:
