Documentation for OGC Web Feature Service
Definition Type: ComplexType
Name: DescribeFeatureTypeType
Namespace: http://www.opengis.net/wfs/2.0
Type: wfs:BaseRequestType
Containing Schema: wfs.xsd
Abstract

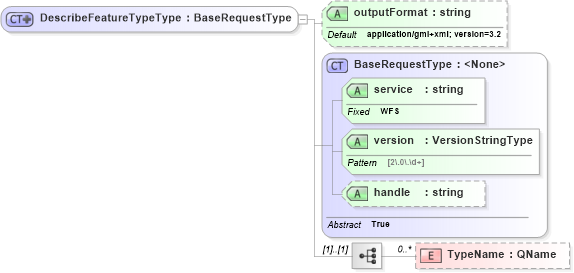

Collapse XSD Schema Diagram:
Drilldown into TypeName in schema wfs_xsd Drilldown into handle in schema wfs_xsd Drilldown into version in schema wfs_xsd Drilldown into service in schema wfs_xsd Drilldown into BaseRequestType in schema wfs_xsd Drilldown into outputFormat in schema wfs_xsdXSD Diagram of DescribeFeatureTypeType in schema wfs_xsd (OGC Web Feature Service)
Collapse XSD Schema Code:
<xsd:complexType name="DescribeFeatureTypeType">
    <xsd:complexContent>
        <xsd:extension base="wfs:BaseRequestType">
            <xsd:sequence>
                <xsd:element name="TypeName" type="xsd:QName" minOccurs="0" maxOccurs="unbounded" />
            </xsd:sequence>
            <xsd:attribute name="outputFormat" type="xsd:string" default="application/gml+xml; version=3.2" />
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
TypeName wfs:TypeName 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
service wfs:service Required
version wfs:version Required
handle wfs:handle (Optional)
outputFormat wfs:outputFormat application/gml+xml; version=3.2 (Optional)
Collapse Derivation Tree:
Collapse References:
wfs:DescribeFeatureType
