Documentation for OGC Web Feature Service
Definition Type: ComplexType
Name: ExceptionType
Namespace: http://www.opengis.net/ows/1.1
Containing Schema: owsExceptionReport.xsd
Abstract
Documentation:
An Exception element describes one detected error that a server chooses to convey to the client.

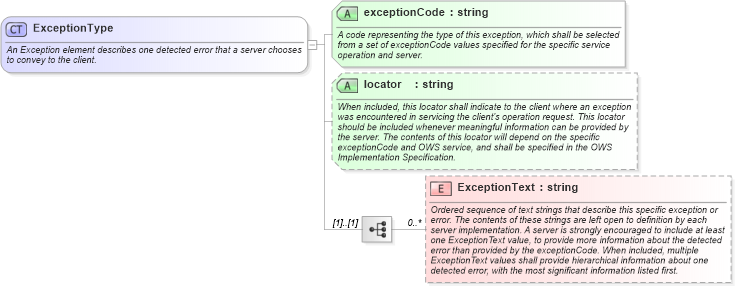

Collapse XSD Schema Diagram:
Drilldown into ExceptionText in schema owsexceptionreport_xsd Drilldown into locator in schema owsexceptionreport_xsd Drilldown into exceptionCode in schema owsexceptionreport_xsdXSD Diagram of ExceptionType in schema owsexceptionreport_xsd (OGC Web Feature Service)
Collapse XSD Schema Code:
<complexType name="ExceptionType">
    <annotation>
        <documentation>An Exception element describes one detected error that a server chooses to convey to the client. </documentation>
    </annotation>
    <sequence>
        <element name="ExceptionText" type="string" minOccurs="0" maxOccurs="unbounded">
            <annotation>
                <documentation>Ordered sequence of text strings that describe this specific exception or error. The contents of these strings are left open to definition by each server implementation. A server is strongly encouraged to include at least one ExceptionText value, to provide more information about the detected error than provided by the exceptionCode. When included, multiple ExceptionText values shall provide hierarchical information about one detected error, with the most significant information listed first. </documentation>
            </annotation>
        </element>
    </sequence>
    <attribute name="exceptionCode" type="string" use="required">
        <annotation>
            <documentation>A code representing the type of this exception, which shall be selected from a set of exceptionCode values specified for the specific service operation and server. </documentation>
        </annotation>
    </attribute>
    <attribute name="locator" type="string" use="optional">
        <annotation>
            <documentation>When included, this locator shall indicate to the client where an exception was encountered in servicing the client's operation request. This locator should be included whenever meaningful information can be provided by the server. The contents of this locator will depend on the specific exceptionCode and OWS service, and shall be specified in the OWS Implementation Specification. </documentation>
        </annotation>
    </attribute>
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ExceptionText ows:ExceptionText 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
exceptionCode ows:exceptionCode Required
locator ows:locator Optional
Collapse Derivation Tree:
Collapse References:
ows:Exception
