Documentation for OGC Web Feature Service
Definition Type: Element
Name: FeatureType
Namespace: http://www.opengis.net/wfs/2.0
Type: wfs:FeatureTypeType
Containing Schema: wfs.xsd
MinOccurs (1)
MaxOccurs unbounded
Abstract

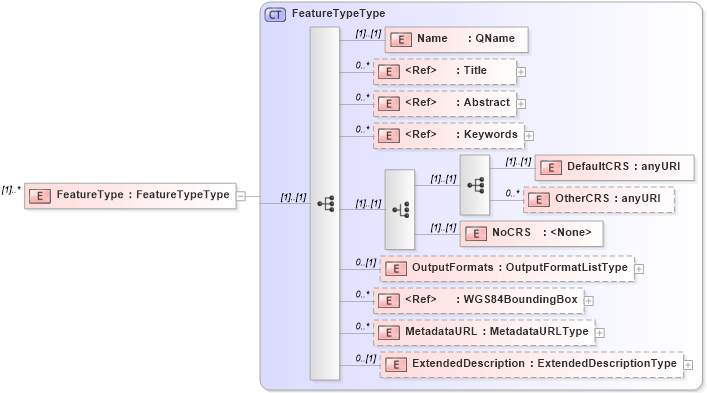

Collapse XSD Schema Diagram:
Drilldown into ExtendedDescription in schema wfs_xsd Drilldown into MetadataURL in schema wfs_xsd Drilldown into WGS84BoundingBox in schema owscommon_xsd Drilldown into OutputFormats in schema wfs_xsd Drilldown into NoCRS in schema wfs_xsd Drilldown into OtherCRS in schema wfs_xsd Drilldown into DefaultCRS in schema wfs_xsd Drilldown into Keywords in schema ows19115subset_xsd Drilldown into Abstract in schema wfs_xsd Drilldown into Title in schema wfs_xsd Drilldown into Name in schema wfs_xsd Drilldown into FeatureTypeType in schema wfs_xsdXSD Diagram of FeatureType in schema wfs_xsd (OGC Web Feature Service)
Collapse XSD Schema Code:
<xsd:element name="FeatureType" type="wfs:FeatureTypeType" maxOccurs="unbounded" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Name wfs:Name (1) (1)
Title wfs:Title 0 unbounded
Abstract wfs:Abstract 0 unbounded
Keywords ows:Keywords 0 unbounded
DefaultCRS wfs:DefaultCRS (1) (1)
OtherCRS wfs:OtherCRS 0 unbounded
NoCRS wfs:NoCRS (1) (1)
OutputFormats wfs:OutputFormats 0 (1)
WGS84BoundingBox ows:WGS84BoundingBox 0 unbounded
MetadataURL wfs:MetadataURL 0 unbounded
ExtendedDescription wfs:ExtendedDescription 0 (1)
Collapse Derivation Tree:
