Documentation for OGC Web Feature Service
Definition Type: Element
Name: Filter_Capabilities
Namespace: http://www.opengis.net/fes/2.0
Containing Schema: filterCapabilities.xsd
Abstract

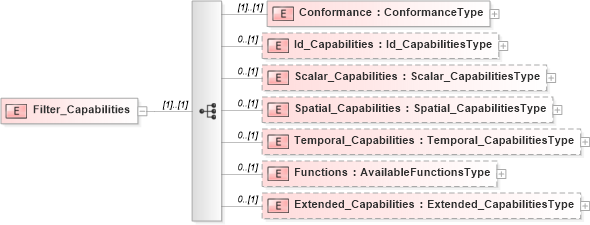

Collapse XSD Schema Diagram:
Drilldown into Extended_Capabilities in schema filtercapabilities_xsd Drilldown into Functions in schema filtercapabilities_xsd Drilldown into Temporal_Capabilities in schema filtercapabilities_xsd Drilldown into Spatial_Capabilities in schema filtercapabilities_xsd Drilldown into Scalar_Capabilities in schema filtercapabilities_xsd Drilldown into Id_Capabilities in schema filtercapabilities_xsd Drilldown into Conformance in schema filtercapabilities_xsdXSD Diagram of Filter_Capabilities in schema filtercapabilities_xsd (OGC Web Feature Service)
Collapse XSD Schema Code:
<xsd:element name="Filter_Capabilities">
    <xsd:complexType>
        <xsd:sequence>
            <xsd:element name="Conformance" type="fes:ConformanceType" />
            <xsd:element name="Id_Capabilities" type="fes:Id_CapabilitiesType" minOccurs="0" />
            <xsd:element name="Scalar_Capabilities" type="fes:Scalar_CapabilitiesType" minOccurs="0" />
            <xsd:element name="Spatial_Capabilities" type="fes:Spatial_CapabilitiesType" minOccurs="0" />
            <xsd:element name="Temporal_Capabilities" type="fes:Temporal_CapabilitiesType" minOccurs="0" />
            <xsd:element name="Functions" type="fes:AvailableFunctionsType" minOccurs="0" />
            <xsd:element name="Extended_Capabilities" type="fes:Extended_CapabilitiesType" minOccurs="0" />
        </xsd:sequence>
    </xsd:complexType>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Conformance fes:Conformance (1) (1)
Id_Capabilities fes:Id_Capabilities 0 (1)
Scalar_Capabilities fes:Scalar_Capabilities 0 (1)
Spatial_Capabilities fes:Spatial_Capabilities 0 (1)
Temporal_Capabilities fes:Temporal_Capabilities 0 (1)
Functions fes:Functions 0 (1)
Extended_Capabilities fes:Extended_Capabilities 0 (1)
