Documentation for OGC Web Feature Service
Definition Type: Element
Name: OnlineResource
Namespace: http://www.opengis.net/ows/1.1
Type: ows:OnlineResourceType
Containing Schema: ows19115subset.xsd
MinOccurs 0
MaxOccurs (1)
Abstract
Documentation:
On-line information that can be used to contact the individual or organization. OWS specifics: The xlink:href attribute in the xlink:simpleAttrs attribute group shall be used to reference this resource. Whenever practical, the xlink:href attribute with type anyURI should be a URL from which more contact information can be electronically retrieved. The xlink:title attribute with type "string" can be used to name this set of information. The other attributes in the xlink:simpleAttrs attribute group should not be used.

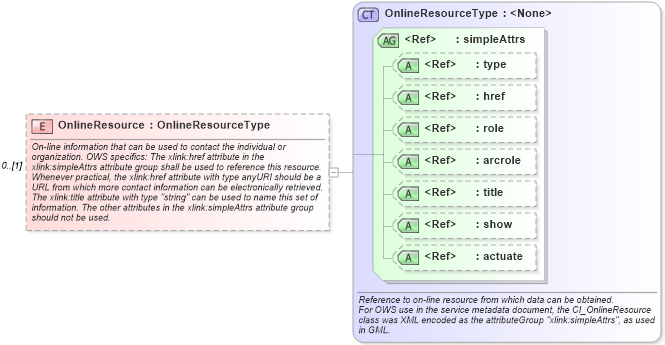

Collapse XSD Schema Diagram:
Drilldown into actuate in schema xlink_xsd Drilldown into show in schema xlink_xsd Drilldown into title in schema xlink_xsd Drilldown into arcrole in schema xlink_xsd Drilldown into role in schema xlink_xsd Drilldown into href in schema xlink_xsd Drilldown into type in schema xlink_xsd Drilldown into simpleAttrs in schema xlink_xsd Drilldown into OnlineResourceType in schema ows19115subset_xsdXSD Diagram of OnlineResource in schema ows19115subset_xsd (OGC Web Feature Service)
Collapse XSD Schema Code:
<element name="OnlineResource" type="ows:OnlineResourceType" minOccurs="0">
    <annotation>
        <documentation>On-line information that can be used to contact the individual or organization. OWS specifics: The xlink:href attribute in the xlink:simpleAttrs attribute group shall be used to reference this resource. Whenever practical, the xlink:href attribute with type anyURI should be a URL from which more contact information can be electronically retrieved. The xlink:title attribute with type "string" can be used to name this set of information. The other attributes in the xlink:simpleAttrs attribute group should not be used. </documentation>
    </annotation>
</element>
Collapse Child Attributes:
Name Type Default Value Use
type xlink:type (Optional)
href xlink:href (Optional)
role xlink:role (Optional)
arcrole xlink:arcrole (Optional)
title xlink:title (Optional)
show xlink:show (Optional)
actuate xlink:actuate (Optional)
Collapse Derivation Tree:
