Documentation for OGC Web Feature Service
Definition Type: Element
Name: OperationResponse
Namespace: http://www.opengis.net/ows/1.1
Type: ows:ManifestType
Containing Schema: owsInputOutputData.xsd
Abstract
Documentation:
Response from an OWS operation, allowing including multiple output data items with each item either included or referenced. This OperationResponse element, or an element using the ManifestType with a more specific element name, shall be used whenever applicable for responses from OWS operations. This element is specified for use where the ManifestType contents are needed for an operation response, but the Manifest element name is not fully applicable. This element or the ManifestType shall be used instead of using the ows:ReferenceType proposed in OGC 04-105.

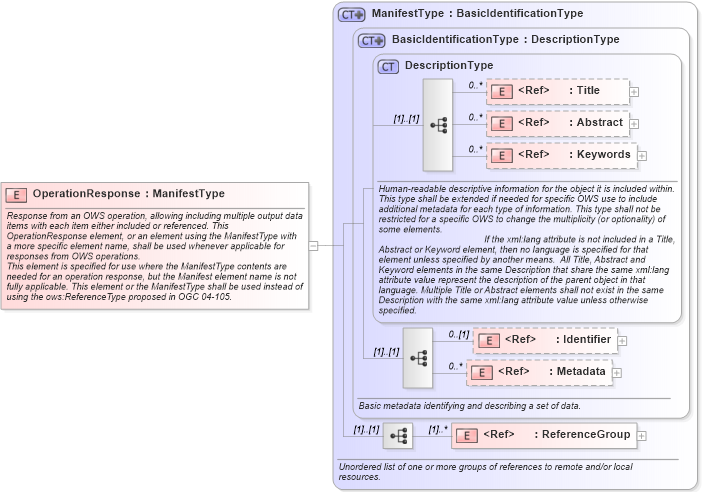

Collapse XSD Schema Diagram:
Drilldown into ReferenceGroup in schema owsmanifest_xsd Drilldown into Metadata in schema owscommon_xsd Drilldown into Identifier in schema owsdataidentification_xsd Drilldown into Keywords in schema ows19115subset_xsd Drilldown into Abstract in schema ows19115subset_xsd Drilldown into Title in schema ows19115subset_xsd Drilldown into DescriptionType in schema owsdataidentification_xsd Drilldown into BasicIdentificationType in schema owsdataidentification_xsd Drilldown into ManifestType in schema owsmanifest_xsdXSD Diagram of OperationResponse in schema owsinputoutputdata_xsd (OGC Web Feature Service)
Collapse XSD Schema Code:
<element name="OperationResponse" type="ows:ManifestType">
    <annotation>
        <documentation>Response from an OWS operation, allowing including multiple output data items with each item either included or referenced. This OperationResponse element, or an element using the ManifestType with a more specific element name, shall be used whenever applicable for responses from OWS operations. </documentation>
        <documentation>This element is specified for use where the ManifestType contents are needed for an operation response, but the Manifest element name is not fully applicable. This element or the ManifestType shall be used instead of using the ows:ReferenceType proposed in OGC 04-105. </documentation>
    </annotation>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Title ows:Title 0 unbounded
Abstract ows:Abstract 0 unbounded
Keywords ows:Keywords 0 unbounded
Identifier ows:Identifier 0 (1)
Metadata ows:Metadata 0 unbounded
ReferenceGroup ows:ReferenceGroup (1) unbounded
Collapse Derivation Tree:
