Documentation for OGC Web Feature Service
Definition Type: ComplexType
Name: TransactionResponseType
Namespace: http://www.opengis.net/wfs/2.0
Containing Schema: wfs.xsd
Abstract
Collapse XSD Schema Diagram:

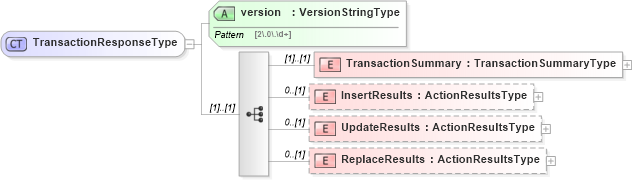

Drilldown into ReplaceResults in schema wfs_xsd Drilldown into UpdateResults in schema wfs_xsd Drilldown into InsertResults in schema wfs_xsd Drilldown into TransactionSummary in schema wfs_xsd Drilldown into version in schema wfs_xsdXSD Diagram of TransactionResponseType in schema wfs_xsd (OGC Web Feature Service)
Collapse XSD Schema Code:
<xsd:complexType name="TransactionResponseType">
    <xsd:sequence>
        <xsd:element name="TransactionSummary" type="wfs:TransactionSummaryType" />
        <xsd:element name="InsertResults" type="wfs:ActionResultsType" minOccurs="0" />
        <xsd:element name="UpdateResults" type="wfs:ActionResultsType" minOccurs="0" />
        <xsd:element name="ReplaceResults" type="wfs:ActionResultsType" minOccurs="0" />
    </xsd:sequence>
    <xsd:attribute name="version" type="wfs:VersionStringType" use="required" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
TransactionSummary wfs:TransactionSummary (1) (1)
InsertResults wfs:InsertResults 0 (1)
UpdateResults wfs:UpdateResults 0 (1)
ReplaceResults wfs:ReplaceResults 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
version wfs:version Required
Collapse Derivation Tree:
Collapse References:
wfs:TransactionResponse
