Definition Type: Element
Name: Arc2D
Type: X3DGeometryNode
Containing Schema: x3d-3.2.xsd
Abstract
Collapse XSD Schema Diagram:

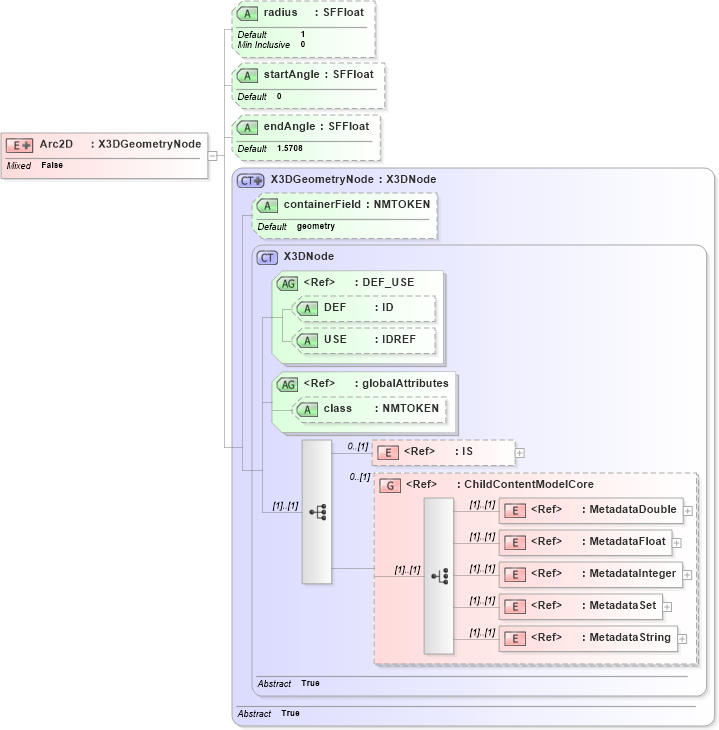

Drilldown into MetadataString in schema x3d-3_2_xsd Drilldown into MetadataSet in schema x3d-3_2_xsd Drilldown into MetadataInteger in schema x3d-3_2_xsd Drilldown into MetadataFloat in schema x3d-3_2_xsd Drilldown into MetadataDouble in schema x3d-3_2_xsd Drilldown into ChildContentModelCore in schema x3d-3_2_xsd Drilldown into IS in schema x3d-3_2_xsd Drilldown into class in schema x3d-3_2_xsd Drilldown into globalAttributes in schema x3d-3_2_xsd Drilldown into USE in schema x3d-3_2_xsd Drilldown into DEF in schema x3d-3_2_xsd Drilldown into DEF_USE in schema x3d-3_2_xsd Drilldown into X3DNode in schema x3d-3_2_xsd Drilldown into containerField in schema x3d-3_2_xsd Drilldown into X3DGeometryNode in schema x3d-3_2_xsd Drilldown into endAngle in schema x3d-3_2_xsd Drilldown into startAngle in schema x3d-3_2_xsd Drilldown into radius in schema x3d-3_2_xsdXSD Diagram of Arc2D in schema x3d-3_2_xsd (Web3D - Open Standards for Real-Time 3D Communication)
Collapse XSD Schema Code:
<xs:element name="Arc2D">
    <xs:annotation>
        <xs:appinfo />
        <xs:documentation source="http://www.web3d.org/x3d/specifications/ISO-IEC-FDIS-19775-1.2-X3D-AbstractSpecification/Part01/components/geometry2D.html#Arc2D" />
    </xs:annotation>
    <xs:complexType mixed="false">
        <xs:complexContent mixed="false">
            <xs:extension base="X3DGeometryNode">
                <xs:attribute name="radius" default="1">
                    <!-- type="SFFloatNonNegative" -->
                    <xs:simpleType>
                        <xs:restriction base="SFFloat">
                            <xs:minInclusive value="0" />
                        </xs:restriction>
                    </xs:simpleType>
                </xs:attribute>
                <xs:attribute name="startAngle" type="SFFloat" default="0" />
                <xs:attribute name="endAngle" type="SFFloat" default="1.5708" />
            </xs:extension>
        </xs:complexContent>
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
IS IS 0 (1)
MetadataDouble MetadataDouble (1) (1)
MetadataFloat MetadataFloat (1) (1)
MetadataInteger MetadataInteger (1) (1)
MetadataSet MetadataSet (1) (1)
MetadataString MetadataString (1) (1)
<xs:group> ChildContentModelCore 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
DEF DEF (Optional)
USE USE (Optional)
class class (Optional)
containerField containerField geometry (Optional)
radius radius 1 (Optional)
startAngle startAngle 0 (Optional)
endAngle endAngle 1.5708 (Optional)
