Definition Type: Element
Name: CollisionCollection
Type: X3DChildNode
Containing Schema: x3d-3.2.xsd
Abstract

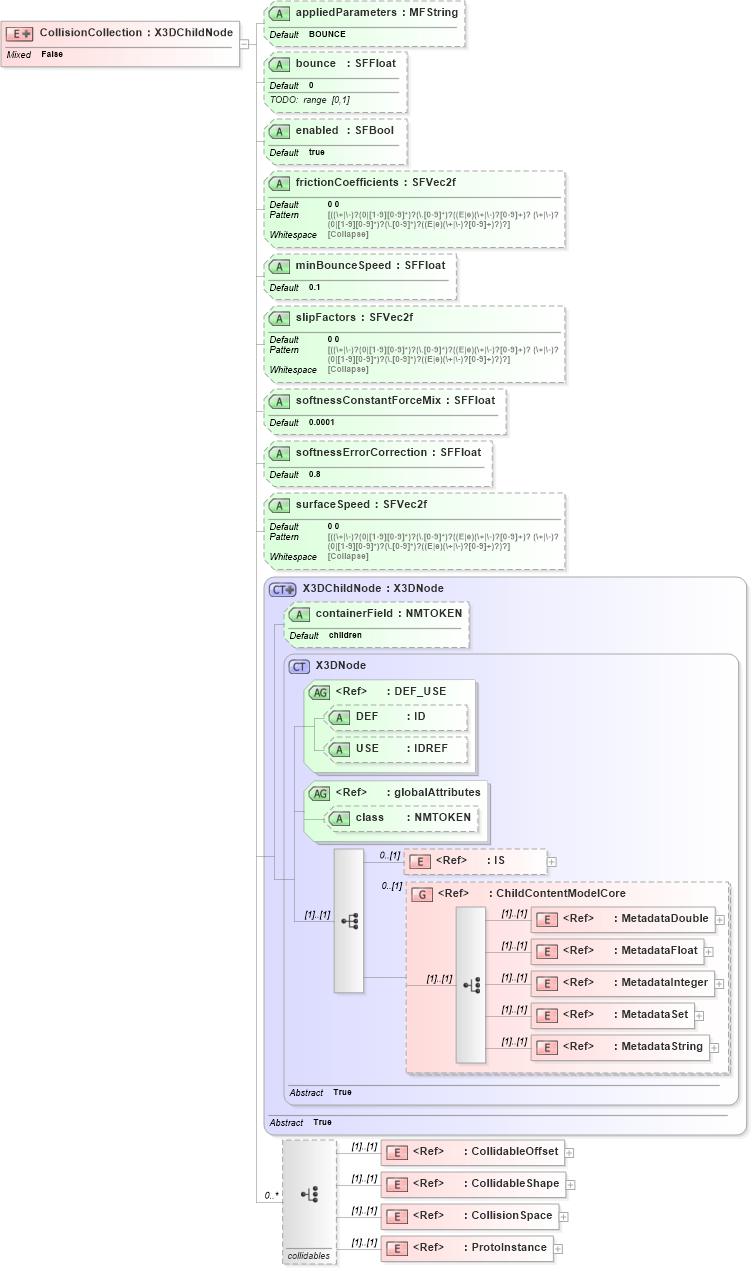

Collapse XSD Schema Diagram:
Drilldown into ProtoInstance in schema x3d-3_2_xsd Drilldown into CollisionSpace in schema x3d-3_2_xsd Drilldown into CollidableShape in schema x3d-3_2_xsd Drilldown into CollidableOffset in schema x3d-3_2_xsd Drilldown into MetadataString in schema x3d-3_2_xsd Drilldown into MetadataSet in schema x3d-3_2_xsd Drilldown into MetadataInteger in schema x3d-3_2_xsd Drilldown into MetadataFloat in schema x3d-3_2_xsd Drilldown into MetadataDouble in schema x3d-3_2_xsd Drilldown into ChildContentModelCore in schema x3d-3_2_xsd Drilldown into IS in schema x3d-3_2_xsd Drilldown into class in schema x3d-3_2_xsd Drilldown into globalAttributes in schema x3d-3_2_xsd Drilldown into USE in schema x3d-3_2_xsd Drilldown into DEF in schema x3d-3_2_xsd Drilldown into DEF_USE in schema x3d-3_2_xsd Drilldown into X3DNode in schema x3d-3_2_xsd Drilldown into containerField in schema x3d-3_2_xsd Drilldown into X3DChildNode in schema x3d-3_2_xsd Drilldown into surfaceSpeed in schema x3d-3_2_xsd Drilldown into softnessErrorCorrection in schema x3d-3_2_xsd Drilldown into softnessConstantForceMix in schema x3d-3_2_xsd Drilldown into slipFactors in schema x3d-3_2_xsd Drilldown into minBounceSpeed in schema x3d-3_2_xsd Drilldown into frictionCoefficients in schema x3d-3_2_xsd Drilldown into enabled in schema x3d-3_2_xsd Drilldown into bounce in schema x3d-3_2_xsd Drilldown into appliedParameters in schema x3d-3_2_xsdXSD Diagram of CollisionCollection in schema x3d-3_2_xsd (Web3D - Open Standards for Real-Time 3D Communication)
Collapse XSD Schema Code:
<xs:element name="CollisionCollection">
    <xs:annotation>
        <xs:appinfo />
        <xs:documentation />
    </xs:annotation>
    <xs:complexType mixed="false">
        <xs:complexContent mixed="false">
            <xs:extension base="X3DChildNode">
                <xs:choice minOccurs="0" maxOccurs="unbounded">
                    <xs:annotation>
                        <xs:documentation>collidables</xs:documentation>
                    </xs:annotation>
                    <xs:element ref="CollidableOffset" />
                    <xs:element ref="CollidableShape" />
                    <xs:element ref="CollisionSpace" />
                    <xs:element ref="ProtoInstance" />
                </xs:choice>
                <xs:attribute name="appliedParameters" type="MFString" default="BOUNCE" />
                <xs:attribute name="bounce" type="SFFloat" default="0">
                    <xs:annotation>
                        <xs:documentation>TODO:  range  [0,1]</xs:documentation>
                    </xs:annotation>
                </xs:attribute>
                <xs:attribute name="enabled" type="SFBool" default="true" />
                <xs:attribute name="frictionCoefficients" type="SFVec2f" default="0 0" />
                <xs:attribute name="minBounceSpeed" type="SFFloat" default="0.1" />
                <xs:attribute name="slipFactors" type="SFVec2f" default="0 0" />
                <xs:attribute name="softnessConstantForceMix" type="SFFloat" default="0.0001" />
                <xs:attribute name="softnessErrorCorrection" type="SFFloat" default="0.8" />
                <xs:attribute name="surfaceSpeed" type="SFVec2f" default="0 0" />
            </xs:extension>
        </xs:complexContent>
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
IS IS 0 (1)
MetadataDouble MetadataDouble (1) (1)
MetadataFloat MetadataFloat (1) (1)
MetadataInteger MetadataInteger (1) (1)
MetadataSet MetadataSet (1) (1)
MetadataString MetadataString (1) (1)
CollidableOffset CollidableOffset (1) (1)
CollidableShape CollidableShape (1) (1)
CollisionSpace CollisionSpace (1) (1)
ProtoInstance ProtoInstance (1) (1)
<xs:group> ChildContentModelCore 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
DEF DEF (Optional)
USE USE (Optional)
class class (Optional)
containerField containerField children (Optional)
appliedParameters appliedParameters BOUNCE (Optional)
bounce bounce 0 (Optional)
enabled enabled true (Optional)
frictionCoefficients frictionCoefficients 0 0 (Optional)
minBounceSpeed minBounceSpeed 0.1 (Optional)
slipFactors slipFactors 0 0 (Optional)
softnessConstantForceMix softnessConstantForceMix 0.0001 (Optional)
softnessErrorCorrection softnessErrorCorrection 0.8 (Optional)
surfaceSpeed surfaceSpeed 0 0 (Optional)
Collapse Derivation Tree:
