Definition Type: Element
Name: ComposedCubeMapTexture
Type: X3DEnvironmentTextureNode
Containing Schema: x3d-3.2.xsd
Abstract

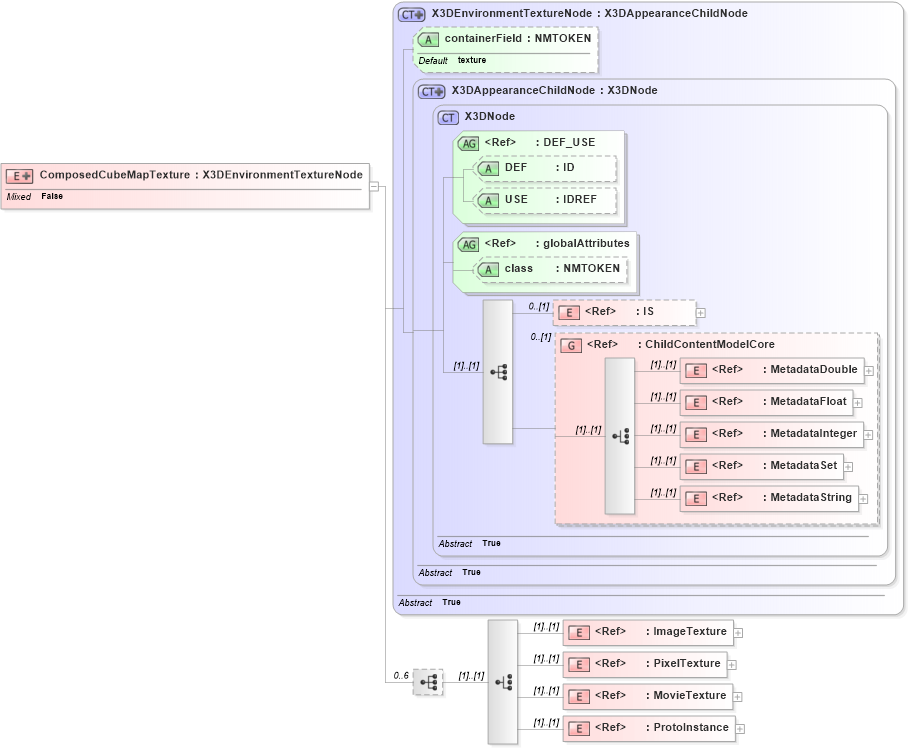

Collapse XSD Schema Diagram:
Drilldown into ProtoInstance in schema x3d-3_2_xsd Drilldown into MovieTexture in schema x3d-3_2_xsd Drilldown into PixelTexture in schema x3d-3_2_xsd Drilldown into ImageTexture in schema x3d-3_2_xsd Drilldown into MetadataString in schema x3d-3_2_xsd Drilldown into MetadataSet in schema x3d-3_2_xsd Drilldown into MetadataInteger in schema x3d-3_2_xsd Drilldown into MetadataFloat in schema x3d-3_2_xsd Drilldown into MetadataDouble in schema x3d-3_2_xsd Drilldown into ChildContentModelCore in schema x3d-3_2_xsd Drilldown into IS in schema x3d-3_2_xsd Drilldown into class in schema x3d-3_2_xsd Drilldown into globalAttributes in schema x3d-3_2_xsd Drilldown into USE in schema x3d-3_2_xsd Drilldown into DEF in schema x3d-3_2_xsd Drilldown into DEF_USE in schema x3d-3_2_xsd Drilldown into X3DNode in schema x3d-3_2_xsd Drilldown into X3DAppearanceChildNode in schema x3d-3_2_xsd Drilldown into containerField in schema x3d-3_2_xsd Drilldown into X3DEnvironmentTextureNode in schema x3d-3_2_xsdXSD Diagram of ComposedCubeMapTexture in schema x3d-3_2_xsd (Web3D - Open Standards for Real-Time 3D Communication)
Collapse XSD Schema Code:
<xs:element name="ComposedCubeMapTexture">
    <xs:annotation>
        <xs:appinfo />
        <xs:documentation source="http://www.web3d.org/x3d/specifications/ISO-IEC-19775-Amendment1-X3DAbstractSpecification/Part01/components/env_texture.html#ComposedCubeMapTexture" />
    </xs:annotation>
    <xs:complexType mixed="false">
        <xs:complexContent mixed="false">
            <xs:extension base="X3DEnvironmentTextureNode">
                <xs:sequence minOccurs="0" maxOccurs="6">
                    <xs:choice>
                        <xs:element ref="ImageTexture" />
                        <xs:element ref="PixelTexture" />
                        <xs:element ref="MovieTexture" />
                        <xs:element ref="ProtoInstance" />
                    </xs:choice>
                </xs:sequence>
            </xs:extension>
            <!-- containerField values:  front back left right top bottom -->
        </xs:complexContent>
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
IS IS 0 (1)
MetadataDouble MetadataDouble (1) (1)
MetadataFloat MetadataFloat (1) (1)
MetadataInteger MetadataInteger (1) (1)
MetadataSet MetadataSet (1) (1)
MetadataString MetadataString (1) (1)
ImageTexture ImageTexture (1) (1)
PixelTexture PixelTexture (1) (1)
MovieTexture MovieTexture (1) (1)
ProtoInstance ProtoInstance (1) (1)
<xs:group> ChildContentModelCore 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
DEF DEF (Optional)
USE USE (Optional)
class class (Optional)
containerField containerField texture (Optional)
Collapse Derivation Tree:
