Definition Type: Element
Name: DISEntityManager
Type: X3DChildNode
Containing Schema: x3d-3.2.xsd
Abstract

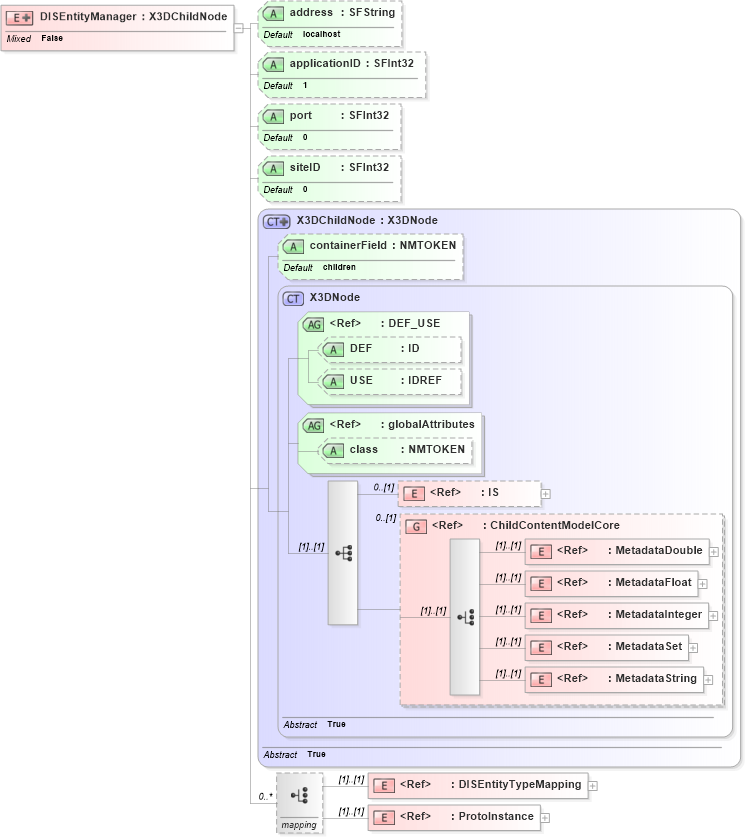

Collapse XSD Schema Diagram:
Drilldown into ProtoInstance in schema x3d-3_2_xsd Drilldown into DISEntityTypeMapping in schema x3d-3_2_xsd Drilldown into MetadataString in schema x3d-3_2_xsd Drilldown into MetadataSet in schema x3d-3_2_xsd Drilldown into MetadataInteger in schema x3d-3_2_xsd Drilldown into MetadataFloat in schema x3d-3_2_xsd Drilldown into MetadataDouble in schema x3d-3_2_xsd Drilldown into ChildContentModelCore in schema x3d-3_2_xsd Drilldown into IS in schema x3d-3_2_xsd Drilldown into class in schema x3d-3_2_xsd Drilldown into globalAttributes in schema x3d-3_2_xsd Drilldown into USE in schema x3d-3_2_xsd Drilldown into DEF in schema x3d-3_2_xsd Drilldown into DEF_USE in schema x3d-3_2_xsd Drilldown into X3DNode in schema x3d-3_2_xsd Drilldown into containerField in schema x3d-3_2_xsd Drilldown into X3DChildNode in schema x3d-3_2_xsd Drilldown into siteID in schema x3d-3_2_xsd Drilldown into port in schema x3d-3_2_xsd Drilldown into applicationID in schema x3d-3_2_xsd Drilldown into address in schema x3d-3_2_xsdXSD Diagram of DISEntityManager in schema x3d-3_2_xsd (Web3D - Open Standards for Real-Time 3D Communication)
Collapse XSD Schema Code:
<xs:element name="DISEntityManager">
    <xs:annotation>
        <xs:appinfo />
        <xs:documentation source="http://www.web3d.org/x3d/specifications/ISO-IEC-FDIS-19775-1.2-X3D-AbstractSpecification/Part01/components/dis.html#ReceiverPdu" />
    </xs:annotation>
    <xs:complexType mixed="false">
        <xs:complexContent mixed="false">
            <xs:extension base="X3DChildNode">
                <xs:choice minOccurs="0" maxOccurs="unbounded">
                    <xs:annotation>
                        <xs:documentation>mapping</xs:documentation>
                    </xs:annotation>
                    <xs:element ref="DISEntityTypeMapping" />
                    <xs:element ref="ProtoInstance" />
                </xs:choice>
                <xs:attribute name="address" type="SFString" default="localhost" />
                <xs:attribute name="applicationID" type="SFInt32" default="1" />
                <xs:attribute name="port" type="SFInt32" default="0" />
                <xs:attribute name="siteID" type="SFInt32" default="0" />
            </xs:extension>
        </xs:complexContent>
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
IS IS 0 (1)
MetadataDouble MetadataDouble (1) (1)
MetadataFloat MetadataFloat (1) (1)
MetadataInteger MetadataInteger (1) (1)
MetadataSet MetadataSet (1) (1)
MetadataString MetadataString (1) (1)
DISEntityTypeMapping DISEntityTypeMapping (1) (1)
ProtoInstance ProtoInstance (1) (1)
<xs:group> ChildContentModelCore 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
DEF DEF (Optional)
USE USE (Optional)
class class (Optional)
containerField containerField children (Optional)
address address localhost (Optional)
applicationID applicationID 1 (Optional)
port port 0 (Optional)
siteID siteID 0 (Optional)
Collapse Derivation Tree:
