Definition Type: Element
Name: Extrusion
Type: X3DGeometryNode
Containing Schema: x3d-3.2.xsd
Abstract
Collapse XSD Schema Diagram:

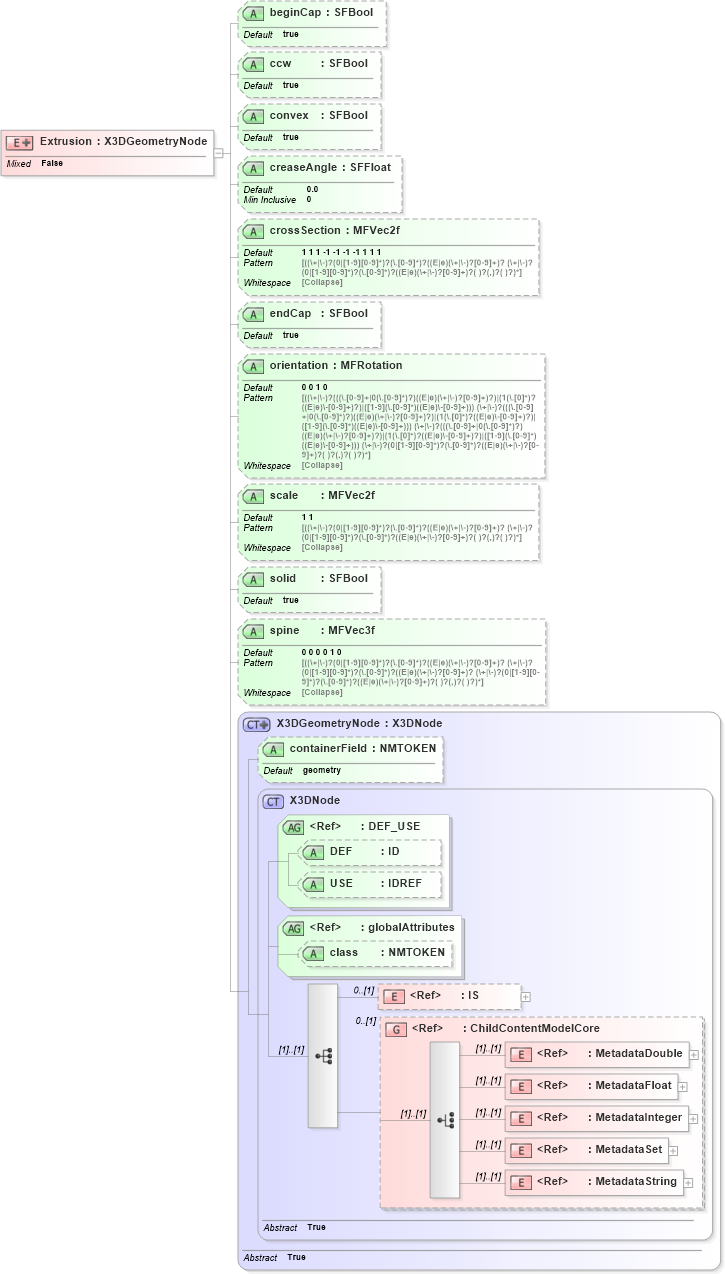

Drilldown into MetadataString in schema x3d-3_2_xsd Drilldown into MetadataSet in schema x3d-3_2_xsd Drilldown into MetadataInteger in schema x3d-3_2_xsd Drilldown into MetadataFloat in schema x3d-3_2_xsd Drilldown into MetadataDouble in schema x3d-3_2_xsd Drilldown into ChildContentModelCore in schema x3d-3_2_xsd Drilldown into IS in schema x3d-3_2_xsd Drilldown into class in schema x3d-3_2_xsd Drilldown into globalAttributes in schema x3d-3_2_xsd Drilldown into USE in schema x3d-3_2_xsd Drilldown into DEF in schema x3d-3_2_xsd Drilldown into DEF_USE in schema x3d-3_2_xsd Drilldown into X3DNode in schema x3d-3_2_xsd Drilldown into containerField in schema x3d-3_2_xsd Drilldown into X3DGeometryNode in schema x3d-3_2_xsd Drilldown into spine in schema x3d-3_2_xsd Drilldown into solid in schema x3d-3_2_xsd Drilldown into scale in schema x3d-3_2_xsd Drilldown into orientation in schema x3d-3_2_xsd Drilldown into endCap in schema x3d-3_2_xsd Drilldown into crossSection in schema x3d-3_2_xsd Drilldown into creaseAngle in schema x3d-3_2_xsd Drilldown into convex in schema x3d-3_2_xsd Drilldown into ccw in schema x3d-3_2_xsd Drilldown into beginCap in schema x3d-3_2_xsdXSD Diagram of Extrusion in schema x3d-3_2_xsd (Web3D - Open Standards for Real-Time 3D Communication)
Collapse XSD Schema Code:
<xs:element name="Extrusion">
    <xs:annotation>
        <xs:appinfo />
        <xs:documentation source="http://www.web3d.org/x3d/specifications/ISO-IEC-FDIS-19775-1.2-X3D-AbstractSpecification/Part01/components/geometry3D.html#Extrusion" />
    </xs:annotation>
    <xs:complexType mixed="false">
        <xs:complexContent mixed="false">
            <xs:extension base="X3DGeometryNode">
                <xs:attribute name="beginCap" type="SFBool" default="true" />
                <xs:attribute name="ccw" type="SFBool" default="true" />
                <xs:attribute name="convex" type="SFBool" default="true" />
                <xs:attribute name="creaseAngle" default="0.0">
                    <!-- type="SFFloatNonNegative" -->
                    <xs:simpleType>
                        <xs:restriction base="SFFloat">
                            <xs:minInclusive value="0" />
                        </xs:restriction>
                    </xs:simpleType>
                </xs:attribute>
                <xs:attribute name="crossSection" type="MFVec2f" default="1 1 1 -1 -1 -1 -1 1 1 1" />
                <xs:attribute name="endCap" type="SFBool" default="true" />
                <xs:attribute name="orientation" type="MFRotation" default="0 0 1 0" />
                <xs:attribute name="scale" type="MFVec2f" default="1 1" />
                <xs:attribute name="solid" type="SFBool" default="true" />
                <xs:attribute name="spine" type="MFVec3f" default="0 0 0 0 1 0" />
            </xs:extension>
        </xs:complexContent>
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
IS IS 0 (1)
MetadataDouble MetadataDouble (1) (1)
MetadataFloat MetadataFloat (1) (1)
MetadataInteger MetadataInteger (1) (1)
MetadataSet MetadataSet (1) (1)
MetadataString MetadataString (1) (1)
<xs:group> ChildContentModelCore 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
DEF DEF (Optional)
USE USE (Optional)
class class (Optional)
containerField containerField geometry (Optional)
beginCap beginCap true (Optional)
ccw ccw true (Optional)
convex convex true (Optional)
creaseAngle creaseAngle 0.0 (Optional)
crossSection crossSection 1 1 1 -1 -1 -1 -1 1 1 1 (Optional)
endCap endCap true (Optional)
orientation orientation 0 0 1 0 (Optional)
scale scale 1 1 (Optional)
solid solid true (Optional)
spine spine 0 0 0 0 1 0 (Optional)
