Definition Type: Element
Name: GeoProximitySensor
Type: X3DEnvironmentalSensorNode
Containing Schema: x3d-3.2.xsd
Abstract

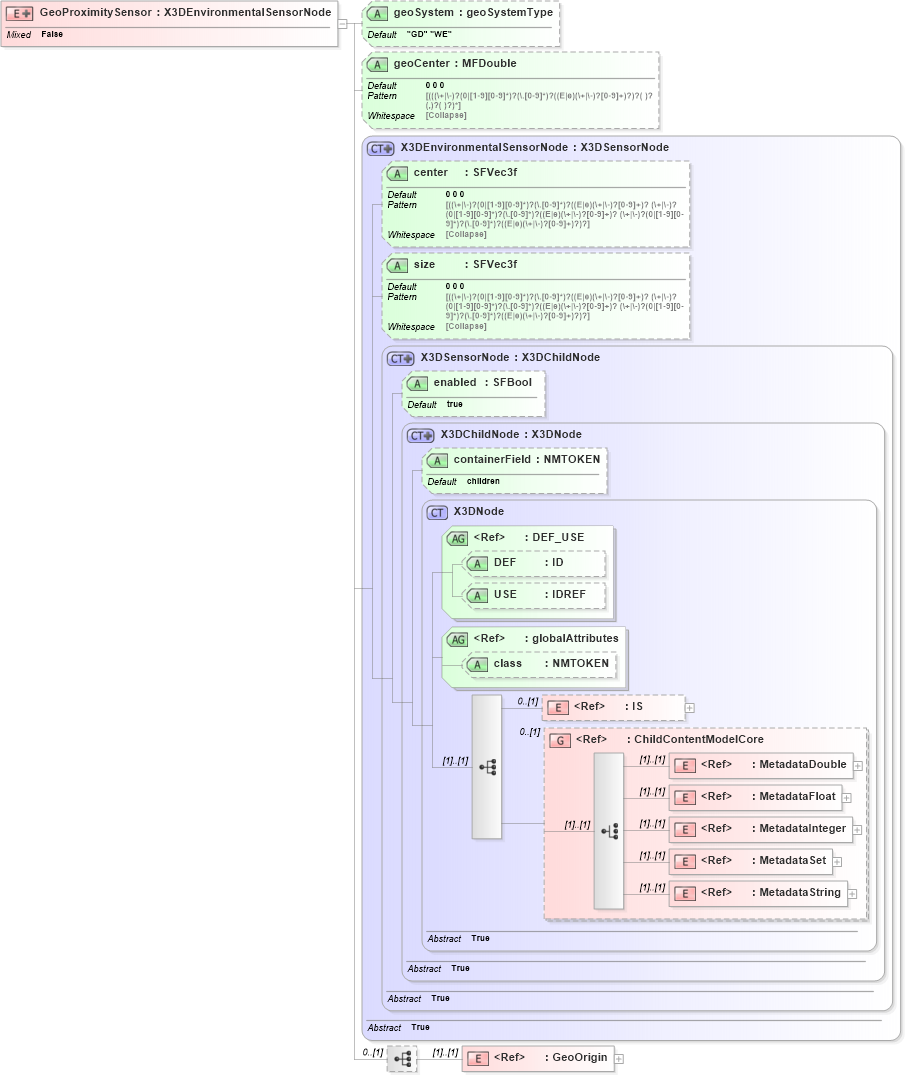

Collapse XSD Schema Diagram:
Drilldown into GeoOrigin in schema x3d-3_2_xsd Drilldown into MetadataString in schema x3d-3_2_xsd Drilldown into MetadataSet in schema x3d-3_2_xsd Drilldown into MetadataInteger in schema x3d-3_2_xsd Drilldown into MetadataFloat in schema x3d-3_2_xsd Drilldown into MetadataDouble in schema x3d-3_2_xsd Drilldown into ChildContentModelCore in schema x3d-3_2_xsd Drilldown into IS in schema x3d-3_2_xsd Drilldown into class in schema x3d-3_2_xsd Drilldown into globalAttributes in schema x3d-3_2_xsd Drilldown into USE in schema x3d-3_2_xsd Drilldown into DEF in schema x3d-3_2_xsd Drilldown into DEF_USE in schema x3d-3_2_xsd Drilldown into X3DNode in schema x3d-3_2_xsd Drilldown into containerField in schema x3d-3_2_xsd Drilldown into X3DChildNode in schema x3d-3_2_xsd Drilldown into enabled in schema x3d-3_2_xsd Drilldown into X3DSensorNode in schema x3d-3_2_xsd Drilldown into size in schema x3d-3_2_xsd Drilldown into center in schema x3d-3_2_xsd Drilldown into X3DEnvironmentalSensorNode in schema x3d-3_2_xsd Drilldown into geoCenter in schema x3d-3_2_xsd Drilldown into geoSystem in schema x3d-3_2_xsdXSD Diagram of GeoProximitySensor in schema x3d-3_2_xsd (Web3D - Open Standards for Real-Time 3D Communication)
Collapse XSD Schema Code:
<xs:element name="GeoProximitySensor">
    <xs:annotation>
        <xs:appinfo />
        <xs:documentation source="http://www.web3d.org/x3d/specifications/ISO-IEC-19775-X3DAbstractSpecification_Revision1_to_Part1/Part01/components/geodata.html#GeoProximitySensor" />
    </xs:annotation>
    <xs:complexType mixed="false">
        <xs:complexContent mixed="false">
            <xs:extension base="X3DEnvironmentalSensorNode">
                <xs:sequence minOccurs="0">
                    <xs:element ref="GeoOrigin" />
                </xs:sequence>
                <xs:attribute name="geoSystem" type="geoSystemType" default="&quot;GD&quot; &quot;WE&quot;" />
                <xs:attribute name="geoCenter" type="MFDouble" default="0 0 0" />
            </xs:extension>
            <!-- TODO bug submitted that 'center' field in parent type X3DEnvironmentalSensorNode is inappropriate and needs refactoring -->
        </xs:complexContent>
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
IS IS 0 (1)
MetadataDouble MetadataDouble (1) (1)
MetadataFloat MetadataFloat (1) (1)
MetadataInteger MetadataInteger (1) (1)
MetadataSet MetadataSet (1) (1)
MetadataString MetadataString (1) (1)
GeoOrigin GeoOrigin (1) (1)
<xs:group> ChildContentModelCore 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
DEF DEF (Optional)
USE USE (Optional)
class class (Optional)
containerField containerField children (Optional)
enabled enabled true (Optional)
center center 0 0 0 (Optional)
size size 0 0 0 (Optional)
geoSystem geoSystem "GD" "WE" (Optional)
geoCenter geoCenter 0 0 0 (Optional)
Collapse Derivation Tree:
