Definition Type: Element
Name: GeoTouchSensor
Type: X3DTouchSensorNode
Containing Schema: x3d-3.2.xsd
Abstract

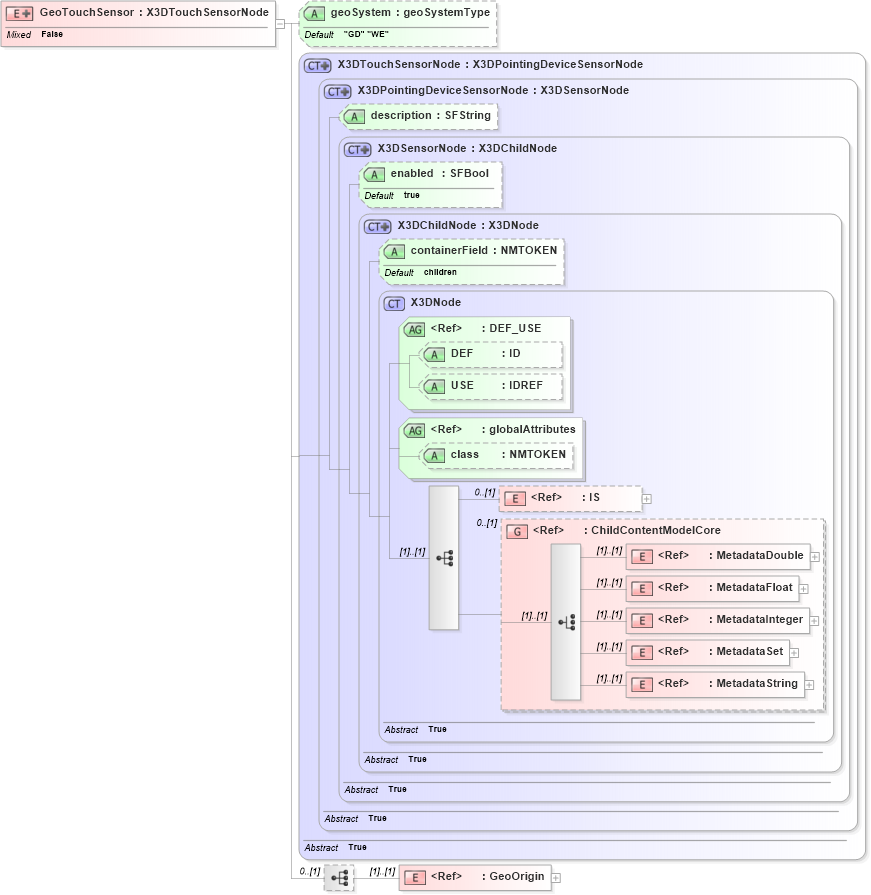

Collapse XSD Schema Diagram:
Drilldown into GeoOrigin in schema x3d-3_2_xsd Drilldown into MetadataString in schema x3d-3_2_xsd Drilldown into MetadataSet in schema x3d-3_2_xsd Drilldown into MetadataInteger in schema x3d-3_2_xsd Drilldown into MetadataFloat in schema x3d-3_2_xsd Drilldown into MetadataDouble in schema x3d-3_2_xsd Drilldown into ChildContentModelCore in schema x3d-3_2_xsd Drilldown into IS in schema x3d-3_2_xsd Drilldown into class in schema x3d-3_2_xsd Drilldown into globalAttributes in schema x3d-3_2_xsd Drilldown into USE in schema x3d-3_2_xsd Drilldown into DEF in schema x3d-3_2_xsd Drilldown into DEF_USE in schema x3d-3_2_xsd Drilldown into X3DNode in schema x3d-3_2_xsd Drilldown into containerField in schema x3d-3_2_xsd Drilldown into X3DChildNode in schema x3d-3_2_xsd Drilldown into enabled in schema x3d-3_2_xsd Drilldown into X3DSensorNode in schema x3d-3_2_xsd Drilldown into description in schema x3d-3_2_xsd Drilldown into X3DPointingDeviceSensorNode in schema x3d-3_2_xsd Drilldown into X3DTouchSensorNode in schema x3d-3_2_xsd Drilldown into geoSystem in schema x3d-3_2_xsdXSD Diagram of GeoTouchSensor in schema x3d-3_2_xsd (Web3D - Open Standards for Real-Time 3D Communication)
Collapse XSD Schema Code:
<xs:element name="GeoTouchSensor">
    <xs:annotation>
        <xs:appinfo />
        <xs:documentation source="http://www.web3d.org/x3d/specifications/ISO-IEC-FDIS-19775-1.2-X3D-AbstractSpecification/Part01/components/geodata.html#GeoTouchSensor" />
    </xs:annotation>
    <xs:complexType mixed="false">
        <xs:complexContent mixed="false">
            <xs:extension base="X3DTouchSensorNode">
                <xs:sequence minOccurs="0">
                    <xs:element ref="GeoOrigin" />
                </xs:sequence>
                <xs:attribute name="geoSystem" type="geoSystemType" default="&quot;GD&quot; &quot;WE&quot;" />
            </xs:extension>
        </xs:complexContent>
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
IS IS 0 (1)
MetadataDouble MetadataDouble (1) (1)
MetadataFloat MetadataFloat (1) (1)
MetadataInteger MetadataInteger (1) (1)
MetadataSet MetadataSet (1) (1)
MetadataString MetadataString (1) (1)
GeoOrigin GeoOrigin (1) (1)
<xs:group> ChildContentModelCore 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
DEF DEF (Optional)
USE USE (Optional)
class class (Optional)
containerField containerField children (Optional)
enabled enabled true (Optional)
description description (Optional)
geoSystem geoSystem "GD" "WE" (Optional)
Collapse Derivation Tree:
