Definition Type: Element
Name: HAnimDisplacer
Type: X3DGeometricPropertyNode
Containing Schema: x3d-3.2.xsd
Abstract

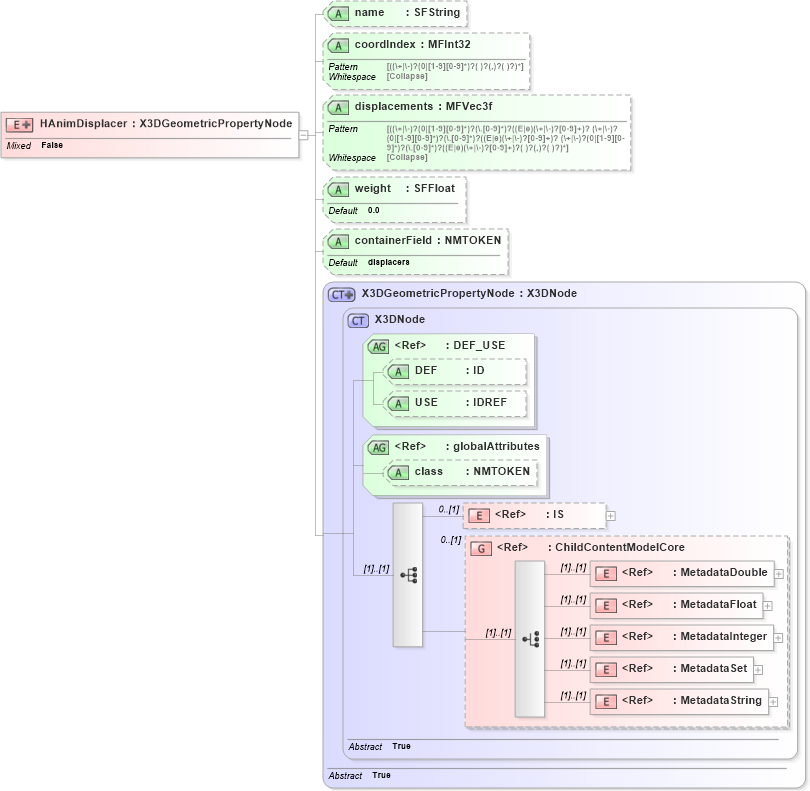

Collapse XSD Schema Diagram:
Drilldown into MetadataString in schema x3d-3_2_xsd Drilldown into MetadataSet in schema x3d-3_2_xsd Drilldown into MetadataInteger in schema x3d-3_2_xsd Drilldown into MetadataFloat in schema x3d-3_2_xsd Drilldown into MetadataDouble in schema x3d-3_2_xsd Drilldown into ChildContentModelCore in schema x3d-3_2_xsd Drilldown into IS in schema x3d-3_2_xsd Drilldown into class in schema x3d-3_2_xsd Drilldown into globalAttributes in schema x3d-3_2_xsd Drilldown into USE in schema x3d-3_2_xsd Drilldown into DEF in schema x3d-3_2_xsd Drilldown into DEF_USE in schema x3d-3_2_xsd Drilldown into X3DNode in schema x3d-3_2_xsd Drilldown into X3DGeometricPropertyNode in schema x3d-3_2_xsd Drilldown into containerField in schema x3d-3_2_xsd Drilldown into weight in schema x3d-3_2_xsd Drilldown into displacements in schema x3d-3_2_xsd Drilldown into coordIndex in schema x3d-3_2_xsd Drilldown into name in schema x3d-3_2_xsdXSD Diagram of HAnimDisplacer in schema x3d-3_2_xsd (Web3D - Open Standards for Real-Time 3D Communication)
Collapse XSD Schema Code:
<xs:element name="HAnimDisplacer">
    <xs:annotation>
        <xs:appinfo />
        <xs:documentation source="http://www.web3d.org/x3d/specifications/ISO-IEC-FDIS-19775-1.2-X3D-AbstractSpecification/Part01/components/hanim.html#HAnimDisplacer" />
    </xs:annotation>
    <xs:complexType mixed="false">
        <xs:complexContent mixed="false">
            <xs:extension base="X3DGeometricPropertyNode">
                <xs:attribute name="name" type="SFString" />
                <xs:attribute name="coordIndex" type="MFInt32" />
                <xs:attribute name="displacements" type="MFVec3f" />
                <xs:attribute name="weight" type="SFFloat" default="0.0" />
                <xs:attribute name="containerField" type="xs:NMTOKEN" default="displacers" />
            </xs:extension>
        </xs:complexContent>
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
IS IS 0 (1)
MetadataDouble MetadataDouble (1) (1)
MetadataFloat MetadataFloat (1) (1)
MetadataInteger MetadataInteger (1) (1)
MetadataSet MetadataSet (1) (1)
MetadataString MetadataString (1) (1)
<xs:group> ChildContentModelCore 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
DEF DEF (Optional)
USE USE (Optional)
class class (Optional)
name name (Optional)
coordIndex coordIndex (Optional)
displacements displacements (Optional)
weight weight 0.0 (Optional)
containerField containerField displacers (Optional)
Collapse Derivation Tree:
