Definition Type: Element
Name: NurbsPatchSurface
Type: X3DNurbsSurfaceGeometryNode
Containing Schema: x3d-3.2.xsd
Abstract

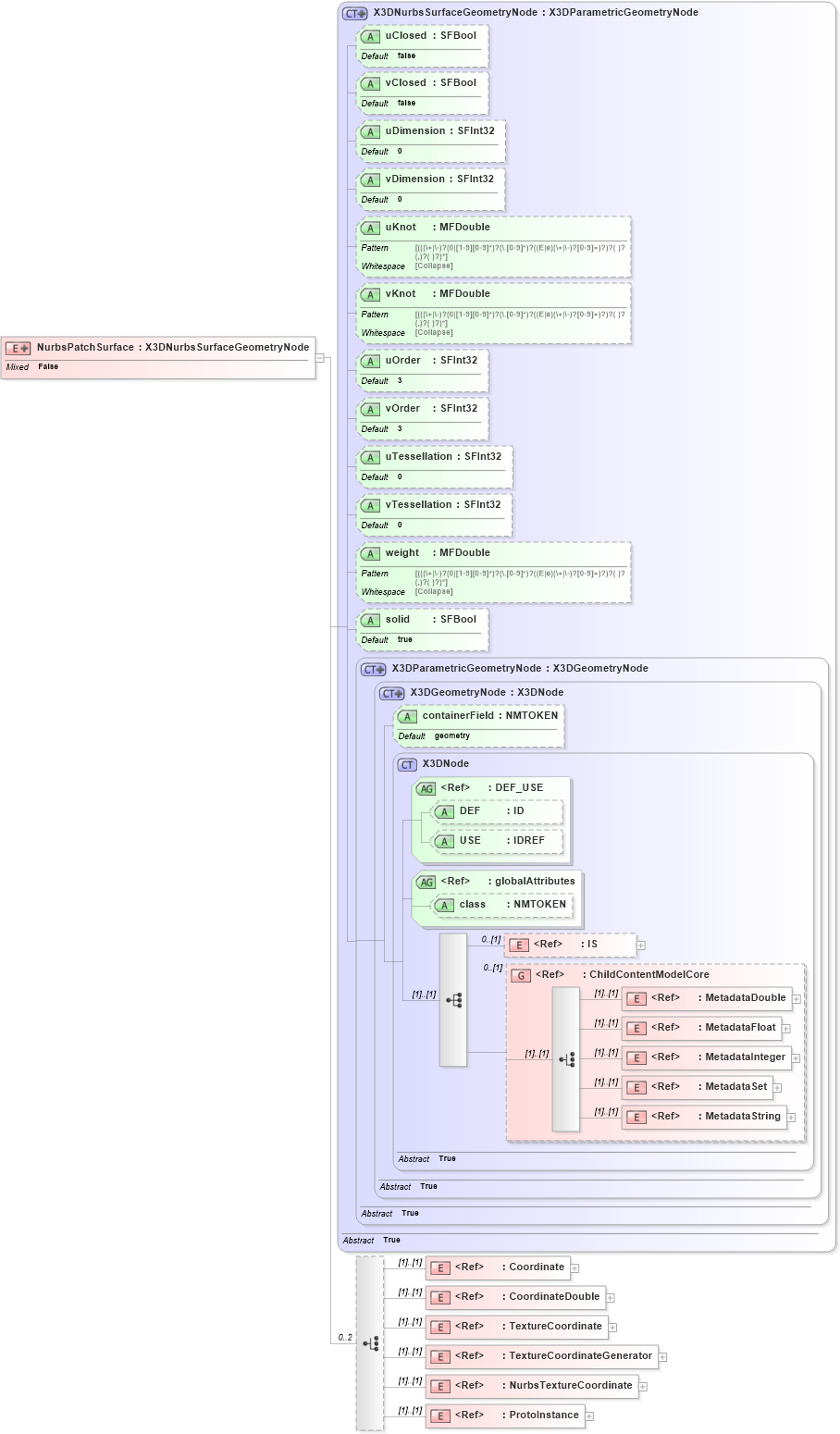

Collapse XSD Schema Diagram:
Drilldown into ProtoInstance in schema x3d-3_2_xsd Drilldown into NurbsTextureCoordinate in schema x3d-3_2_xsd Drilldown into TextureCoordinateGenerator in schema x3d-3_2_xsd Drilldown into TextureCoordinate in schema x3d-3_2_xsd Drilldown into CoordinateDouble in schema x3d-3_2_xsd Drilldown into Coordinate in schema x3d-3_2_xsd Drilldown into MetadataString in schema x3d-3_2_xsd Drilldown into MetadataSet in schema x3d-3_2_xsd Drilldown into MetadataInteger in schema x3d-3_2_xsd Drilldown into MetadataFloat in schema x3d-3_2_xsd Drilldown into MetadataDouble in schema x3d-3_2_xsd Drilldown into ChildContentModelCore in schema x3d-3_2_xsd Drilldown into IS in schema x3d-3_2_xsd Drilldown into class in schema x3d-3_2_xsd Drilldown into globalAttributes in schema x3d-3_2_xsd Drilldown into USE in schema x3d-3_2_xsd Drilldown into DEF in schema x3d-3_2_xsd Drilldown into DEF_USE in schema x3d-3_2_xsd Drilldown into X3DNode in schema x3d-3_2_xsd Drilldown into containerField in schema x3d-3_2_xsd Drilldown into X3DGeometryNode in schema x3d-3_2_xsd Drilldown into X3DParametricGeometryNode in schema x3d-3_2_xsd Drilldown into solid in schema x3d-3_2_xsd Drilldown into weight in schema x3d-3_2_xsd Drilldown into vTessellation in schema x3d-3_2_xsd Drilldown into uTessellation in schema x3d-3_2_xsd Drilldown into vOrder in schema x3d-3_2_xsd Drilldown into uOrder in schema x3d-3_2_xsd Drilldown into vKnot in schema x3d-3_2_xsd Drilldown into uKnot in schema x3d-3_2_xsd Drilldown into vDimension in schema x3d-3_2_xsd Drilldown into uDimension in schema x3d-3_2_xsd Drilldown into vClosed in schema x3d-3_2_xsd Drilldown into uClosed in schema x3d-3_2_xsd Drilldown into X3DNurbsSurfaceGeometryNode in schema x3d-3_2_xsdXSD Diagram of NurbsPatchSurface in schema x3d-3_2_xsd (Web3D - Open Standards for Real-Time 3D Communication)
Collapse XSD Schema Code:
<xs:element name="NurbsPatchSurface">
    <xs:annotation>
        <xs:appinfo />
        <xs:documentation source="http://www.blaxxun.com/support/developerguide/developer/contact/3d/nurbs/spec/nodes.htm#NurbsSurface" />
    </xs:annotation>
    <xs:complexType mixed="false">
        <xs:complexContent mixed="false">
            <xs:extension base="X3DNurbsSurfaceGeometryNode">
                <xs:choice minOccurs="0" maxOccurs="2">
                    <xs:element ref="Coordinate" />
                    <xs:element ref="CoordinateDouble" />
                    <xs:element ref="TextureCoordinate" />
                    <xs:element ref="TextureCoordinateGenerator" />
                    <xs:element ref="NurbsTextureCoordinate" />
                    <xs:element ref="ProtoInstance" />
                </xs:choice>
            </xs:extension>
        </xs:complexContent>
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
IS IS 0 (1)
MetadataDouble MetadataDouble (1) (1)
MetadataFloat MetadataFloat (1) (1)
MetadataInteger MetadataInteger (1) (1)
MetadataSet MetadataSet (1) (1)
MetadataString MetadataString (1) (1)
Coordinate Coordinate (1) (1)
CoordinateDouble CoordinateDouble (1) (1)
TextureCoordinate TextureCoordinate (1) (1)
TextureCoordinateGenerator TextureCoordinateGenerator (1) (1)
NurbsTextureCoordinate NurbsTextureCoordinate (1) (1)
ProtoInstance ProtoInstance (1) (1)
<xs:group> ChildContentModelCore 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
DEF DEF (Optional)
USE USE (Optional)
class class (Optional)
containerField containerField geometry (Optional)
uClosed uClosed false (Optional)
vClosed vClosed false (Optional)
uDimension uDimension 0 (Optional)
vDimension vDimension 0 (Optional)
uKnot uKnot (Optional)
vKnot vKnot (Optional)
uOrder uOrder 3 (Optional)
vOrder vOrder 3 (Optional)
uTessellation uTessellation 0 (Optional)
vTessellation vTessellation 0 (Optional)
weight weight (Optional)
solid solid true (Optional)
Collapse Derivation Tree:
