Definition Type: Element
Name: NurbsSweptSurface
Type: X3DParametricGeometryNode
Containing Schema: x3d-3.2.xsd
Abstract

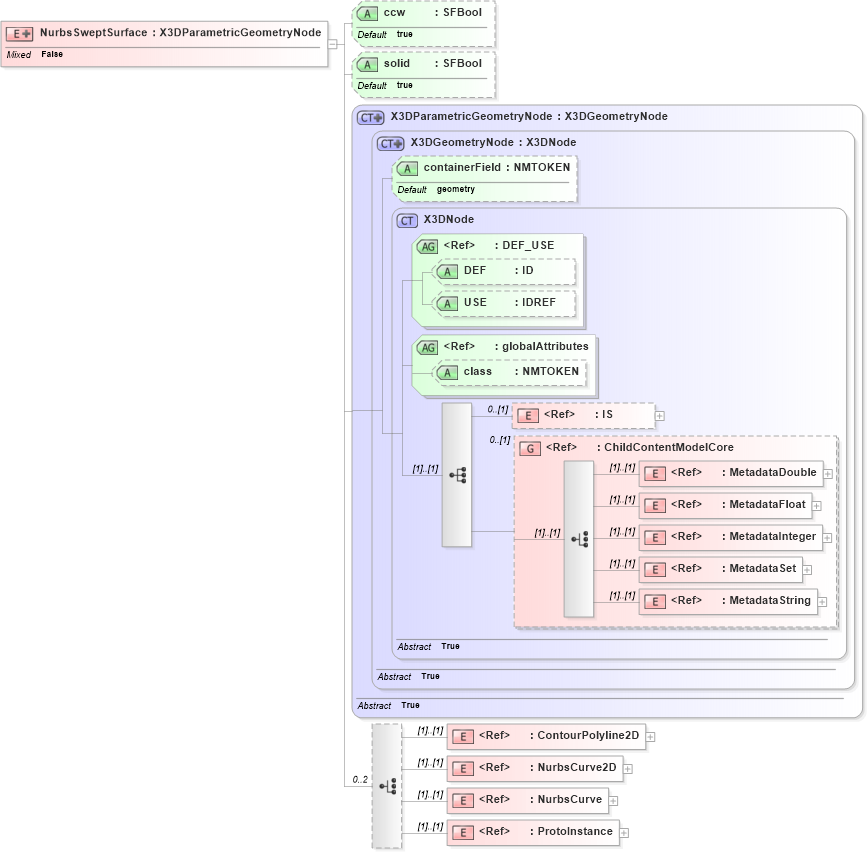

Collapse XSD Schema Diagram:
Drilldown into ProtoInstance in schema x3d-3_2_xsd Drilldown into NurbsCurve in schema x3d-3_2_xsd Drilldown into NurbsCurve2D in schema x3d-3_2_xsd Drilldown into ContourPolyline2D in schema x3d-3_2_xsd Drilldown into MetadataString in schema x3d-3_2_xsd Drilldown into MetadataSet in schema x3d-3_2_xsd Drilldown into MetadataInteger in schema x3d-3_2_xsd Drilldown into MetadataFloat in schema x3d-3_2_xsd Drilldown into MetadataDouble in schema x3d-3_2_xsd Drilldown into ChildContentModelCore in schema x3d-3_2_xsd Drilldown into IS in schema x3d-3_2_xsd Drilldown into class in schema x3d-3_2_xsd Drilldown into globalAttributes in schema x3d-3_2_xsd Drilldown into USE in schema x3d-3_2_xsd Drilldown into DEF in schema x3d-3_2_xsd Drilldown into DEF_USE in schema x3d-3_2_xsd Drilldown into X3DNode in schema x3d-3_2_xsd Drilldown into containerField in schema x3d-3_2_xsd Drilldown into X3DGeometryNode in schema x3d-3_2_xsd Drilldown into X3DParametricGeometryNode in schema x3d-3_2_xsd Drilldown into solid in schema x3d-3_2_xsd Drilldown into ccw in schema x3d-3_2_xsdXSD Diagram of NurbsSweptSurface in schema x3d-3_2_xsd (Web3D - Open Standards for Real-Time 3D Communication)
Collapse XSD Schema Code:
<xs:element name="NurbsSweptSurface">
    <xs:annotation>
        <xs:appinfo />
        <xs:documentation source="http://www.web3d.org/x3d/specifications/ISO-IEC-FDIS-19775-1.2-X3D-AbstractSpecification/Part01/components/nurbs.html#NurbsSweptSurface" />
    </xs:annotation>
    <xs:complexType mixed="false">
        <xs:complexContent mixed="false">
            <xs:extension base="X3DParametricGeometryNode">
                <xs:choice minOccurs="0" maxOccurs="2">
                    <xs:element ref="ContourPolyline2D" />
                    <xs:element ref="NurbsCurve2D" />
                    <xs:element ref="NurbsCurve" />
                    <xs:element ref="ProtoInstance" />
                </xs:choice>
                <xs:attribute name="ccw" type="SFBool" default="true" />
                <xs:attribute name="solid" type="SFBool" default="true" />
            </xs:extension>
        </xs:complexContent>
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
IS IS 0 (1)
MetadataDouble MetadataDouble (1) (1)
MetadataFloat MetadataFloat (1) (1)
MetadataInteger MetadataInteger (1) (1)
MetadataSet MetadataSet (1) (1)
MetadataString MetadataString (1) (1)
ContourPolyline2D ContourPolyline2D (1) (1)
NurbsCurve2D NurbsCurve2D (1) (1)
NurbsCurve NurbsCurve (1) (1)
ProtoInstance ProtoInstance (1) (1)
<xs:group> ChildContentModelCore 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
DEF DEF (Optional)
USE USE (Optional)
class class (Optional)
containerField containerField geometry (Optional)
ccw ccw true (Optional)
solid solid true (Optional)
Collapse Derivation Tree:
