Definition Type: Element
Name: ScreenFontStyle
Type: X3DFontStyleNode
Containing Schema: x3d-3.2.xsd
Abstract

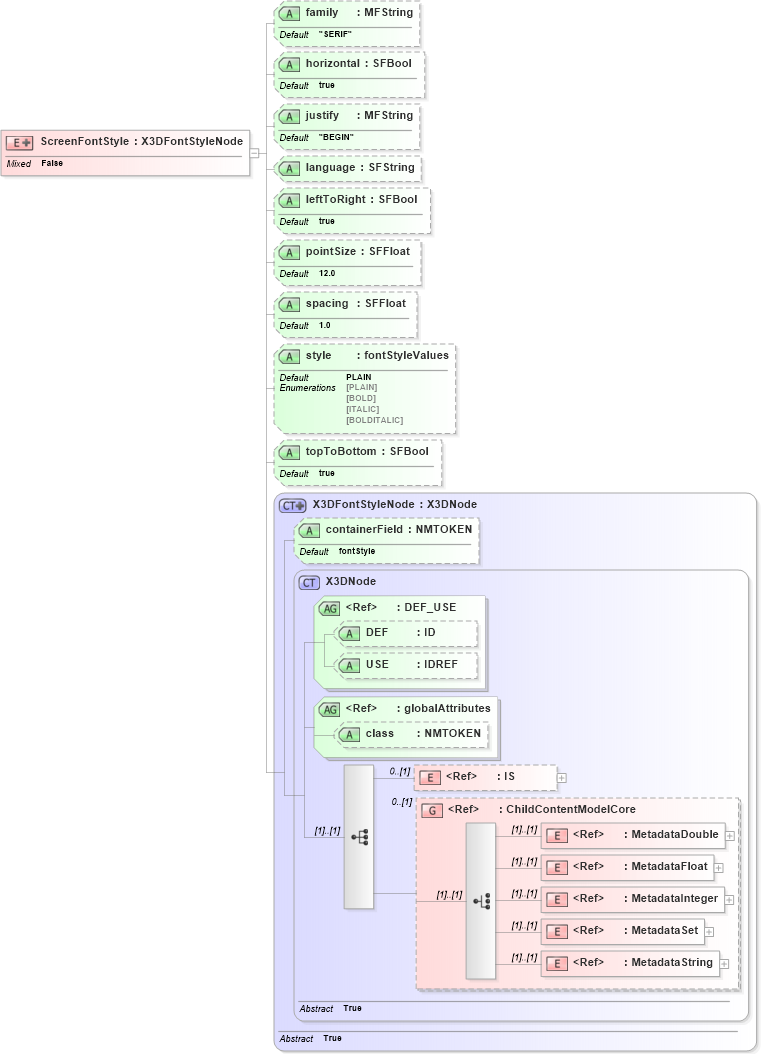

Collapse XSD Schema Diagram:
Drilldown into MetadataString in schema x3d-3_2_xsd Drilldown into MetadataSet in schema x3d-3_2_xsd Drilldown into MetadataInteger in schema x3d-3_2_xsd Drilldown into MetadataFloat in schema x3d-3_2_xsd Drilldown into MetadataDouble in schema x3d-3_2_xsd Drilldown into ChildContentModelCore in schema x3d-3_2_xsd Drilldown into IS in schema x3d-3_2_xsd Drilldown into class in schema x3d-3_2_xsd Drilldown into globalAttributes in schema x3d-3_2_xsd Drilldown into USE in schema x3d-3_2_xsd Drilldown into DEF in schema x3d-3_2_xsd Drilldown into DEF_USE in schema x3d-3_2_xsd Drilldown into X3DNode in schema x3d-3_2_xsd Drilldown into containerField in schema x3d-3_2_xsd Drilldown into X3DFontStyleNode in schema x3d-3_2_xsd Drilldown into topToBottom in schema x3d-3_2_xsd Drilldown into style in schema x3d-3_2_xsd Drilldown into spacing in schema x3d-3_2_xsd Drilldown into pointSize in schema x3d-3_2_xsd Drilldown into leftToRight in schema x3d-3_2_xsd Drilldown into language in schema x3d-3_2_xsd Drilldown into justify in schema x3d-3_2_xsd Drilldown into horizontal in schema x3d-3_2_xsd Drilldown into family in schema x3d-3_2_xsdXSD Diagram of ScreenFontStyle in schema x3d-3_2_xsd (Web3D - Open Standards for Real-Time 3D Communication)
Collapse XSD Schema Code:
<xs:element name="ScreenFontStyle">
    <xs:annotation>
        <xs:appinfo />
        <xs:documentation />
    </xs:annotation>
    <xs:complexType mixed="false">
        <xs:complexContent mixed="false">
            <xs:extension base="X3DFontStyleNode">
                <xs:attribute name="family" type="MFString" default="&quot;SERIF&quot;" />
                <xs:attribute name="horizontal" type="SFBool" default="true" />
                <xs:attribute name="justify" type="MFString" default="&quot;BEGIN&quot;" />
                <xs:attribute name="language" type="SFString" />
                <xs:attribute name="leftToRight" type="SFBool" default="true" />
                <xs:attribute name="pointSize" type="SFFloat" default="12.0" />
                <xs:attribute name="spacing" type="SFFloat" default="1.0" />
                <xs:attribute name="style" type="fontStyleValues" default="PLAIN" />
                <xs:attribute name="topToBottom" type="SFBool" default="true" />
            </xs:extension>
        </xs:complexContent>
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
IS IS 0 (1)
MetadataDouble MetadataDouble (1) (1)
MetadataFloat MetadataFloat (1) (1)
MetadataInteger MetadataInteger (1) (1)
MetadataSet MetadataSet (1) (1)
MetadataString MetadataString (1) (1)
<xs:group> ChildContentModelCore 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
DEF DEF (Optional)
USE USE (Optional)
class class (Optional)
containerField containerField fontStyle (Optional)
family family "SERIF" (Optional)
horizontal horizontal true (Optional)
justify justify "BEGIN" (Optional)
language language (Optional)
leftToRight leftToRight true (Optional)
pointSize pointSize 12.0 (Optional)
spacing spacing 1.0 (Optional)
style style PLAIN (Optional)
topToBottom topToBottom true (Optional)
Collapse Derivation Tree:
