Definition Type: Element
Name: Script
Type: X3DScriptNode
Containing Schema: x3d-3.2.xsd
Abstract

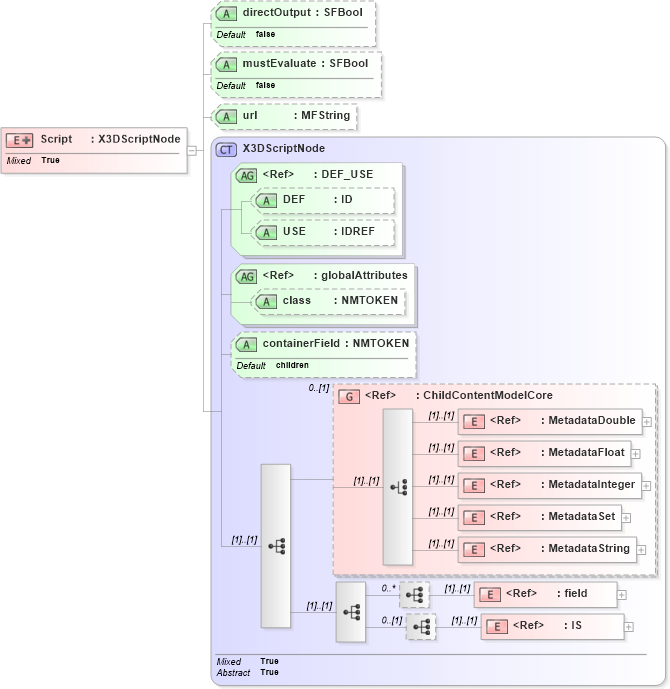

Collapse XSD Schema Diagram:
Drilldown into IS in schema x3d-3_2_xsd Drilldown into field in schema x3d-3_2_xsd Drilldown into MetadataString in schema x3d-3_2_xsd Drilldown into MetadataSet in schema x3d-3_2_xsd Drilldown into MetadataInteger in schema x3d-3_2_xsd Drilldown into MetadataFloat in schema x3d-3_2_xsd Drilldown into MetadataDouble in schema x3d-3_2_xsd Drilldown into ChildContentModelCore in schema x3d-3_2_xsd Drilldown into containerField in schema x3d-3_2_xsd Drilldown into class in schema x3d-3_2_xsd Drilldown into globalAttributes in schema x3d-3_2_xsd Drilldown into USE in schema x3d-3_2_xsd Drilldown into DEF in schema x3d-3_2_xsd Drilldown into DEF_USE in schema x3d-3_2_xsd Drilldown into X3DScriptNode in schema x3d-3_2_xsd Drilldown into url in schema x3d-3_2_xsd Drilldown into mustEvaluate in schema x3d-3_2_xsd Drilldown into directOutput in schema x3d-3_2_xsdXSD Diagram of Script in schema x3d-3_2_xsd (Web3D - Open Standards for Real-Time 3D Communication)
Collapse XSD Schema Code:
<xs:element name="Script">
    <xs:annotation>
        <xs:appinfo>
            <xs:attribute name="otherInterfaces" type="xs:string" fixed="X3DUrlObject" />
        </xs:appinfo>
        <xs:documentation source="http://www.web3d.org/x3d/specifications/ISO-IEC-FDIS-19775-1.2-X3D-AbstractSpecification/Part01/components/scripting.html#Script" />
    </xs:annotation>
    <xs:complexType mixed="true">
        <xs:complexContent mixed="true">
            <xs:extension base="X3DScriptNode">
                <xs:attribute name="directOutput" type="SFBool" default="false" />
                <xs:attribute name="mustEvaluate" type="SFBool" default="false" />
                <xs:attribute name="url" type="MFString" />
            </xs:extension>
        </xs:complexContent>
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
MetadataDouble MetadataDouble (1) (1)
MetadataFloat MetadataFloat (1) (1)
MetadataInteger MetadataInteger (1) (1)
MetadataSet MetadataSet (1) (1)
MetadataString MetadataString (1) (1)
field field (1) (1)
IS IS (1) (1)
<xs:group> ChildContentModelCore 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
DEF DEF (Optional)
USE USE (Optional)
class class (Optional)
containerField containerField children (Optional)
directOutput directOutput false (Optional)
mustEvaluate mustEvaluate false (Optional)
url url (Optional)
Collapse Derivation Tree:
