Definition Type: Element
Name: SphereSensor
Type: X3DDragSensorNode
Containing Schema: x3d-3.2.xsd
Abstract

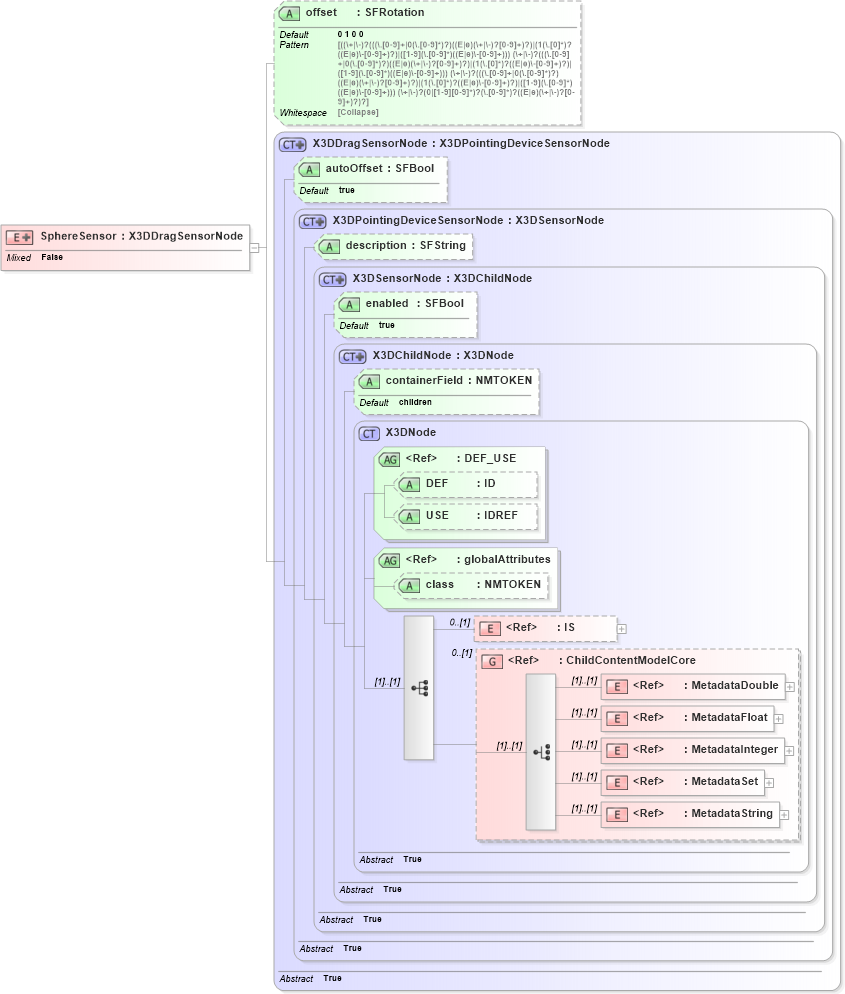

Collapse XSD Schema Diagram:
Drilldown into MetadataString in schema x3d-3_2_xsd Drilldown into MetadataSet in schema x3d-3_2_xsd Drilldown into MetadataInteger in schema x3d-3_2_xsd Drilldown into MetadataFloat in schema x3d-3_2_xsd Drilldown into MetadataDouble in schema x3d-3_2_xsd Drilldown into ChildContentModelCore in schema x3d-3_2_xsd Drilldown into IS in schema x3d-3_2_xsd Drilldown into class in schema x3d-3_2_xsd Drilldown into globalAttributes in schema x3d-3_2_xsd Drilldown into USE in schema x3d-3_2_xsd Drilldown into DEF in schema x3d-3_2_xsd Drilldown into DEF_USE in schema x3d-3_2_xsd Drilldown into X3DNode in schema x3d-3_2_xsd Drilldown into containerField in schema x3d-3_2_xsd Drilldown into X3DChildNode in schema x3d-3_2_xsd Drilldown into enabled in schema x3d-3_2_xsd Drilldown into X3DSensorNode in schema x3d-3_2_xsd Drilldown into description in schema x3d-3_2_xsd Drilldown into X3DPointingDeviceSensorNode in schema x3d-3_2_xsd Drilldown into autoOffset in schema x3d-3_2_xsd Drilldown into X3DDragSensorNode in schema x3d-3_2_xsd Drilldown into offset in schema x3d-3_2_xsdXSD Diagram of SphereSensor in schema x3d-3_2_xsd (Web3D - Open Standards for Real-Time 3D Communication)
Collapse XSD Schema Code:
<xs:element name="SphereSensor">
    <xs:annotation>
        <xs:appinfo />
        <xs:documentation source="http://www.web3d.org/x3d/specifications/ISO-IEC-FDIS-19775-1.2-X3D-AbstractSpecification/Part01/components/pointingsensor.html#SphereSensor" />
    </xs:annotation>
    <xs:complexType mixed="false">
        <xs:complexContent mixed="false">
            <xs:extension base="X3DDragSensorNode">
                <xs:attribute name="offset" type="SFRotation" default="0 1 0 0" />
            </xs:extension>
        </xs:complexContent>
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
IS IS 0 (1)
MetadataDouble MetadataDouble (1) (1)
MetadataFloat MetadataFloat (1) (1)
MetadataInteger MetadataInteger (1) (1)
MetadataSet MetadataSet (1) (1)
MetadataString MetadataString (1) (1)
<xs:group> ChildContentModelCore 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
DEF DEF (Optional)
USE USE (Optional)
class class (Optional)
containerField containerField children (Optional)
enabled enabled true (Optional)
description description (Optional)
autoOffset autoOffset true (Optional)
offset offset 0 1 0 0 (Optional)
Collapse Derivation Tree:
