Definition Type: Group
Name: TextureBackgroundChildContentModel
Containing Schema: x3d-3.2.xsd
Collapse XSD Schema Diagram:

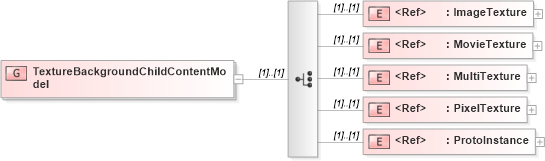

Drilldown into ProtoInstance in schema x3d-3_2_xsd Drilldown into PixelTexture in schema x3d-3_2_xsd Drilldown into MultiTexture in schema x3d-3_2_xsd Drilldown into MovieTexture in schema x3d-3_2_xsd Drilldown into ImageTexture in schema x3d-3_2_xsdXSD Diagram of TextureBackgroundChildContentModel in schema x3d-3_2_xsd (Web3D - Open Standards for Real-Time 3D Communication)
Collapse XSD Schema Code:
<xs:group name="TextureBackgroundChildContentModel">
    <xs:annotation>
        <xs:appinfo>TextureBackgroundChildContentModel is the child-node content model corresponding to TextureBackground.  TextureBackgroundChildContentModel can contain up to six Texture nodes (ImageTexture, MovieTexture, MultiTexture or PixelTexture).  Each child texture must have a different containerField for topTexture, bottomTexture, leftTexture, rightTexture, frontTexture and backTexture.</xs:appinfo>
        <xs:documentation source="http://www.web3d.org/x3d/specifications/ISO-IEC-FDIS-19775-1.2-X3D-AbstractSpecification/Part01/components/enveffects.html#TextureBackground" />
    </xs:annotation>
    <xs:choice>
        <xs:element ref="ImageTexture" />
        <xs:element ref="MovieTexture" />
        <xs:element ref="MultiTexture" />
        <xs:element ref="PixelTexture" />
        <xs:element ref="ProtoInstance" />
    </xs:choice>
    <!--Controversial construct, throws errors if includes minOccurs="0" maxOccurs="6".  Deterministic content model.
		    Moved constraint to parent referring xs:group OK.  Still need to test if more than 6 children will be invalidated.-->
</xs:group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ImageTexture ImageTexture (1) (1)
MovieTexture MovieTexture (1) (1)
MultiTexture MultiTexture (1) (1)
PixelTexture PixelTexture (1) (1)
ProtoInstance ProtoInstance (1) (1)
