Definition Type: Element
Name: TwoSidedMaterial
Type: X3DMaterialNode
Containing Schema: x3d-3.2.xsd
Abstract

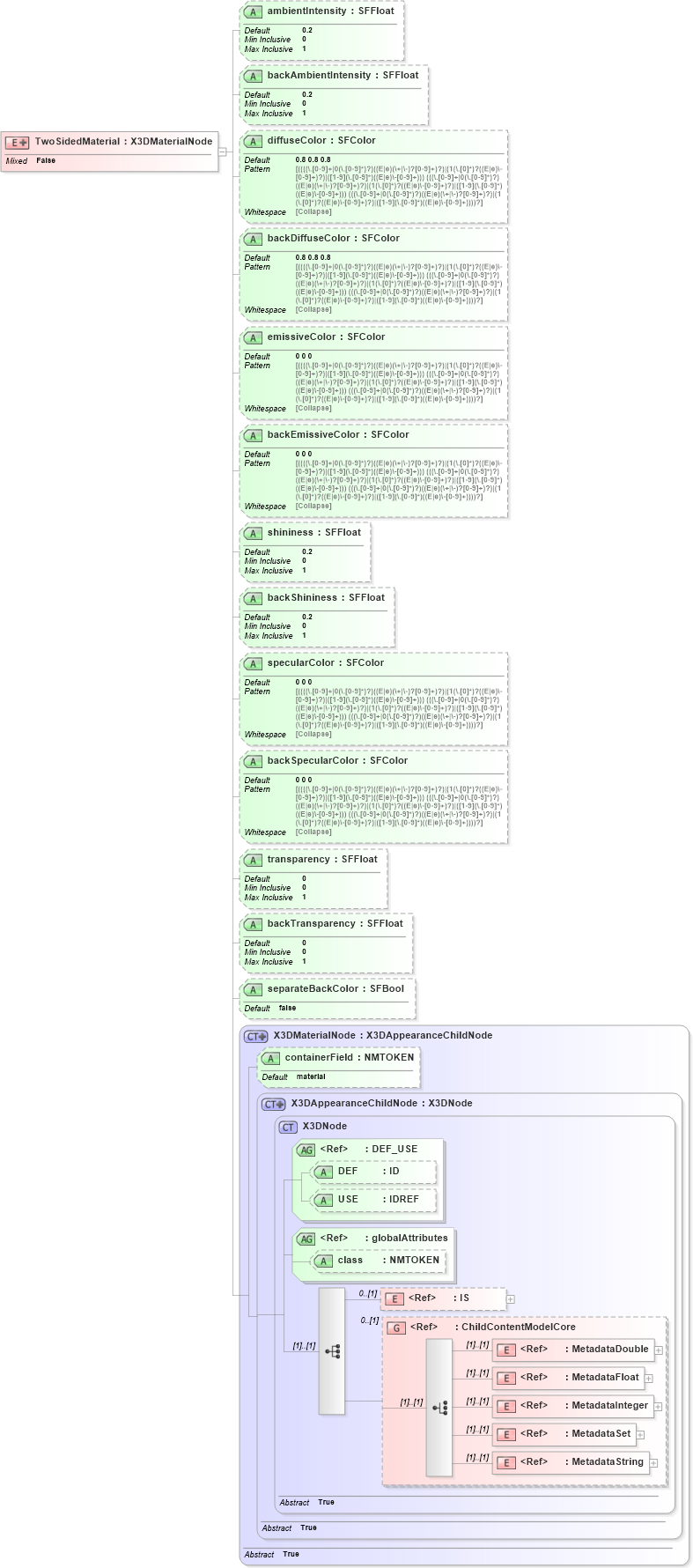

Collapse XSD Schema Diagram:
Drilldown into MetadataString in schema x3d-3_2_xsd Drilldown into MetadataSet in schema x3d-3_2_xsd Drilldown into MetadataInteger in schema x3d-3_2_xsd Drilldown into MetadataFloat in schema x3d-3_2_xsd Drilldown into MetadataDouble in schema x3d-3_2_xsd Drilldown into ChildContentModelCore in schema x3d-3_2_xsd Drilldown into IS in schema x3d-3_2_xsd Drilldown into class in schema x3d-3_2_xsd Drilldown into globalAttributes in schema x3d-3_2_xsd Drilldown into USE in schema x3d-3_2_xsd Drilldown into DEF in schema x3d-3_2_xsd Drilldown into DEF_USE in schema x3d-3_2_xsd Drilldown into X3DNode in schema x3d-3_2_xsd Drilldown into X3DAppearanceChildNode in schema x3d-3_2_xsd Drilldown into containerField in schema x3d-3_2_xsd Drilldown into X3DMaterialNode in schema x3d-3_2_xsd Drilldown into separateBackColor in schema x3d-3_2_xsd Drilldown into backTransparency in schema x3d-3_2_xsd Drilldown into transparency in schema x3d-3_2_xsd Drilldown into backSpecularColor in schema x3d-3_2_xsd Drilldown into specularColor in schema x3d-3_2_xsd Drilldown into backShininess in schema x3d-3_2_xsd Drilldown into shininess in schema x3d-3_2_xsd Drilldown into backEmissiveColor in schema x3d-3_2_xsd Drilldown into emissiveColor in schema x3d-3_2_xsd Drilldown into backDiffuseColor in schema x3d-3_2_xsd Drilldown into diffuseColor in schema x3d-3_2_xsd Drilldown into backAmbientIntensity in schema x3d-3_2_xsd Drilldown into ambientIntensity in schema x3d-3_2_xsdXSD Diagram of TwoSidedMaterial in schema x3d-3_2_xsd (Web3D - Open Standards for Real-Time 3D Communication)
Collapse XSD Schema Code:
<xs:element name="TwoSidedMaterial">
    <xs:annotation>
        <xs:appinfo />
        <xs:documentation source="http://www.web3d.org/x3d/specifications/ISO-IEC-FDIS-19775-1.2-X3D-AbstractSpecification/Part01/components/shape.html#Material" />
    </xs:annotation>
    <xs:complexType mixed="false">
        <xs:complexContent mixed="false">
            <xs:extension base="X3DMaterialNode">
                <xs:attribute name="ambientIntensity" default="0.2">
                    <xs:simpleType>
                        <xs:restriction base="SFFloat">
                            <xs:minInclusive value="0" />
                            <xs:maxInclusive value="1" />
                        </xs:restriction>
                    </xs:simpleType>
                </xs:attribute>
                <xs:attribute name="backAmbientIntensity" default="0.2">
                    <xs:simpleType>
                        <xs:restriction base="SFFloat">
                            <xs:minInclusive value="0" />
                            <xs:maxInclusive value="1" />
                        </xs:restriction>
                    </xs:simpleType>
                </xs:attribute>
                <xs:attribute name="diffuseColor" type="SFColor" default="0.8 0.8 0.8" />
                <xs:attribute name="backDiffuseColor" type="SFColor" default="0.8 0.8 0.8" />
                <xs:attribute name="emissiveColor" type="SFColor" default="0 0 0" />
                <xs:attribute name="backEmissiveColor" type="SFColor" default="0 0 0" />
                <xs:attribute name="shininess" default="0.2">
                    <xs:simpleType>
                        <xs:restriction base="SFFloat">
                            <xs:minInclusive value="0" />
                            <xs:maxInclusive value="1" />
                        </xs:restriction>
                    </xs:simpleType>
                </xs:attribute>
                <xs:attribute name="backShininess" default="0.2">
                    <xs:simpleType>
                        <xs:restriction base="SFFloat">
                            <xs:minInclusive value="0" />
                            <xs:maxInclusive value="1" />
                        </xs:restriction>
                    </xs:simpleType>
                </xs:attribute>
                <xs:attribute name="specularColor" type="SFColor" default="0 0 0" />
                <xs:attribute name="backSpecularColor" type="SFColor" default="0 0 0" />
                <xs:attribute name="transparency" default="0">
                    <xs:simpleType>
                        <xs:restriction base="SFFloat">
                            <xs:minInclusive value="0" />
                            <xs:maxInclusive value="1" />
                        </xs:restriction>
                    </xs:simpleType>
                </xs:attribute>
                <xs:attribute name="backTransparency" default="0">
                    <xs:simpleType>
                        <xs:restriction base="SFFloat">
                            <xs:minInclusive value="0" />
                            <xs:maxInclusive value="1" />
                        </xs:restriction>
                    </xs:simpleType>
                </xs:attribute>
                <xs:attribute name="separateBackColor" type="SFBool" default="false" />
            </xs:extension>
        </xs:complexContent>
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
IS IS 0 (1)
MetadataDouble MetadataDouble (1) (1)
MetadataFloat MetadataFloat (1) (1)
MetadataInteger MetadataInteger (1) (1)
MetadataSet MetadataSet (1) (1)
MetadataString MetadataString (1) (1)
<xs:group> ChildContentModelCore 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
DEF DEF (Optional)
USE USE (Optional)
class class (Optional)
containerField containerField material (Optional)
ambientIntensity ambientIntensity 0.2 (Optional)
backAmbientIntensity backAmbientIntensity 0.2 (Optional)
diffuseColor diffuseColor 0.8 0.8 0.8 (Optional)
backDiffuseColor backDiffuseColor 0.8 0.8 0.8 (Optional)
emissiveColor emissiveColor 0 0 0 (Optional)
backEmissiveColor backEmissiveColor 0 0 0 (Optional)
shininess shininess 0.2 (Optional)
backShininess backShininess 0.2 (Optional)
specularColor specularColor 0 0 0 (Optional)
backSpecularColor backSpecularColor 0 0 0 (Optional)
transparency transparency 0 (Optional)
backTransparency backTransparency 0 (Optional)
separateBackColor separateBackColor false (Optional)
Collapse Derivation Tree:
