Definition Type: Element
Name: WindPhysicsModel
Type: X3DParticlePhysicsModelNode
Containing Schema: x3d-3.2.xsd
Abstract

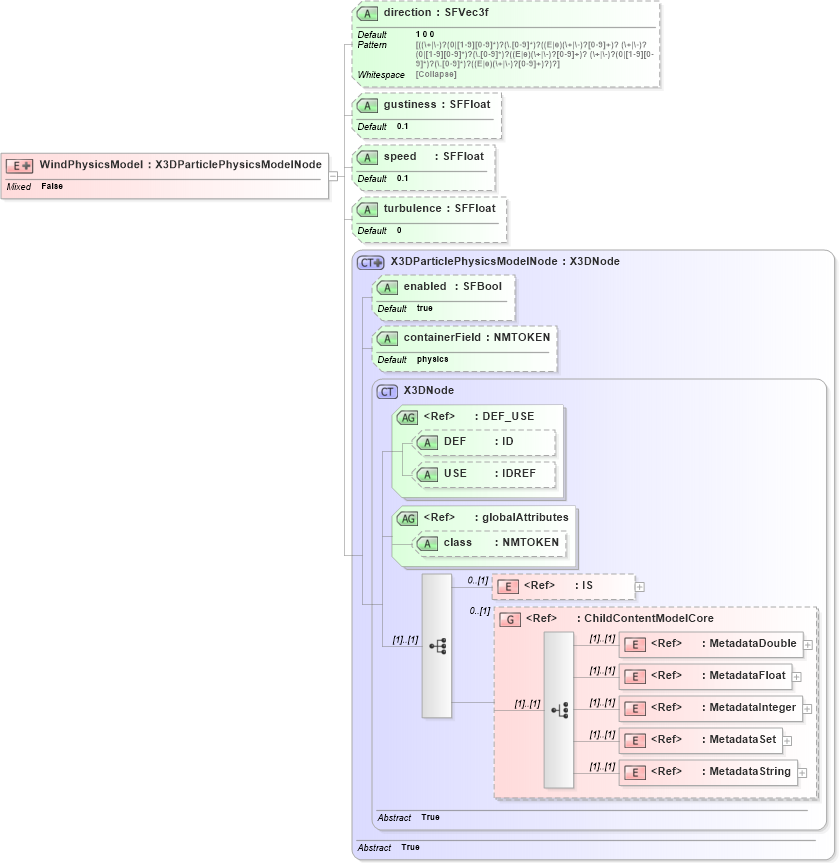

Collapse XSD Schema Diagram:
Drilldown into MetadataString in schema x3d-3_2_xsd Drilldown into MetadataSet in schema x3d-3_2_xsd Drilldown into MetadataInteger in schema x3d-3_2_xsd Drilldown into MetadataFloat in schema x3d-3_2_xsd Drilldown into MetadataDouble in schema x3d-3_2_xsd Drilldown into ChildContentModelCore in schema x3d-3_2_xsd Drilldown into IS in schema x3d-3_2_xsd Drilldown into class in schema x3d-3_2_xsd Drilldown into globalAttributes in schema x3d-3_2_xsd Drilldown into USE in schema x3d-3_2_xsd Drilldown into DEF in schema x3d-3_2_xsd Drilldown into DEF_USE in schema x3d-3_2_xsd Drilldown into X3DNode in schema x3d-3_2_xsd Drilldown into containerField in schema x3d-3_2_xsd Drilldown into enabled in schema x3d-3_2_xsd Drilldown into X3DParticlePhysicsModelNode in schema x3d-3_2_xsd Drilldown into turbulence in schema x3d-3_2_xsd Drilldown into speed in schema x3d-3_2_xsd Drilldown into gustiness in schema x3d-3_2_xsd Drilldown into direction in schema x3d-3_2_xsdXSD Diagram of WindPhysicsModel in schema x3d-3_2_xsd (Web3D - Open Standards for Real-Time 3D Communication)
Collapse XSD Schema Code:
<xs:element name="WindPhysicsModel">
    <xs:annotation>
        <xs:appinfo />
        <xs:documentation />
    </xs:annotation>
    <xs:complexType mixed="false">
        <xs:complexContent mixed="false">
            <xs:extension base="X3DParticlePhysicsModelNode">
                <xs:attribute name="direction" type="SFVec3f" default="1 0 0" />
                <xs:attribute name="gustiness" type="SFFloat" default="0.1" />
                <xs:attribute name="speed" type="SFFloat" default="0.1" />
                <xs:attribute name="turbulence" type="SFFloat" default="0" />
            </xs:extension>
        </xs:complexContent>
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
IS IS 0 (1)
MetadataDouble MetadataDouble (1) (1)
MetadataFloat MetadataFloat (1) (1)
MetadataInteger MetadataInteger (1) (1)
MetadataSet MetadataSet (1) (1)
MetadataString MetadataString (1) (1)
<xs:group> ChildContentModelCore 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
DEF DEF (Optional)
USE USE (Optional)
class class (Optional)
enabled enabled true (Optional)
containerField containerField physics (Optional)
direction direction 1 0 0 (Optional)
gustiness gustiness 0.1 (Optional)
speed speed 0.1 (Optional)
turbulence turbulence 0 (Optional)
Collapse Derivation Tree:
