Definition Type: ComplexType
Name: X3DFogObject
Type: X3DNode
Containing Schema: x3d-3.2.xsd
Abstract True

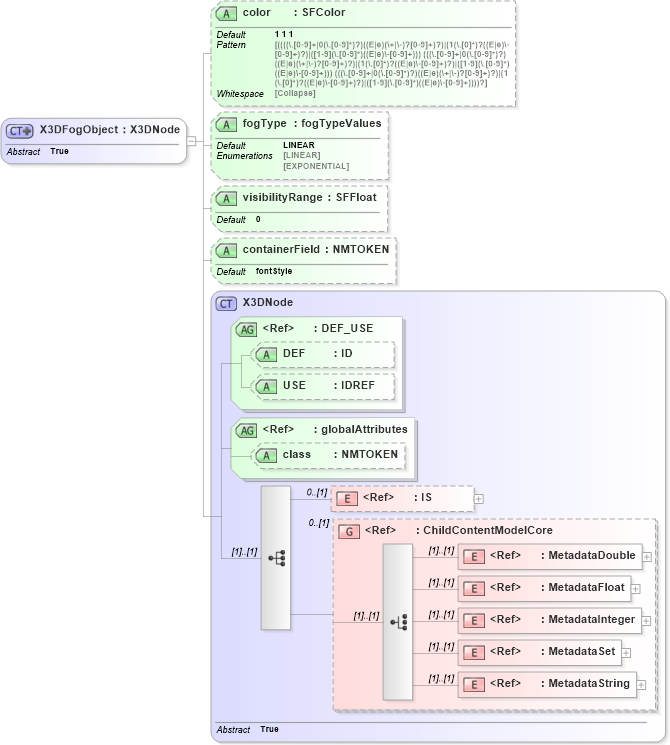

Collapse XSD Schema Diagram:
Drilldown into MetadataString in schema x3d-3_2_xsd Drilldown into MetadataSet in schema x3d-3_2_xsd Drilldown into MetadataInteger in schema x3d-3_2_xsd Drilldown into MetadataFloat in schema x3d-3_2_xsd Drilldown into MetadataDouble in schema x3d-3_2_xsd Drilldown into ChildContentModelCore in schema x3d-3_2_xsd Drilldown into IS in schema x3d-3_2_xsd Drilldown into class in schema x3d-3_2_xsd Drilldown into globalAttributes in schema x3d-3_2_xsd Drilldown into USE in schema x3d-3_2_xsd Drilldown into DEF in schema x3d-3_2_xsd Drilldown into DEF_USE in schema x3d-3_2_xsd Drilldown into X3DNode in schema x3d-3_2_xsd Drilldown into containerField in schema x3d-3_2_xsd Drilldown into visibilityRange in schema x3d-3_2_xsd Drilldown into fogType in schema x3d-3_2_xsd Drilldown into color in schema x3d-3_2_xsdXSD Diagram of X3DFogObject in schema x3d-3_2_xsd (Web3D - Open Standards for Real-Time 3D Communication)
Collapse XSD Schema Code:
<xs:complexType name="X3DFogObject" abstract="true" mixed="false">
    <xs:annotation>
        <xs:appinfo />
        <xs:documentation source="http://www.web3d.org/x3d/specifications/ISO-IEC-19775-Amendment1-X3DAbstractSpecification/Part01/components/enveffects.html#X3DFogOjbect" />
    </xs:annotation>
    <xs:complexContent mixed="false">
        <xs:extension base="X3DNode">
            <xs:attribute name="color" type="SFColor" default="1 1 1" />
            <xs:attribute name="fogType" type="fogTypeValues" default="LINEAR" />
            <xs:attribute name="visibilityRange" type="SFFloat" default="0" />
            <xs:attribute name="containerField" type="xs:NMTOKEN" default="fontStyle" />
        </xs:extension>
    </xs:complexContent>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
IS IS 0 (1)
MetadataDouble MetadataDouble (1) (1)
MetadataFloat MetadataFloat (1) (1)
MetadataInteger MetadataInteger (1) (1)
MetadataSet MetadataSet (1) (1)
MetadataString MetadataString (1) (1)
<xs:group> ChildContentModelCore 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
DEF DEF (Optional)
USE USE (Optional)
class class (Optional)
color color 1 1 1 (Optional)
fogType fogType LINEAR (Optional)
visibilityRange visibilityRange 0 (Optional)
containerField containerField fontStyle (Optional)
Collapse Derivation Tree:
