Definition Type: ComplexType
Name: X3DTexture3DNode
Type: X3DTextureNode
Containing Schema: x3d-3.2.xsd
Abstract True

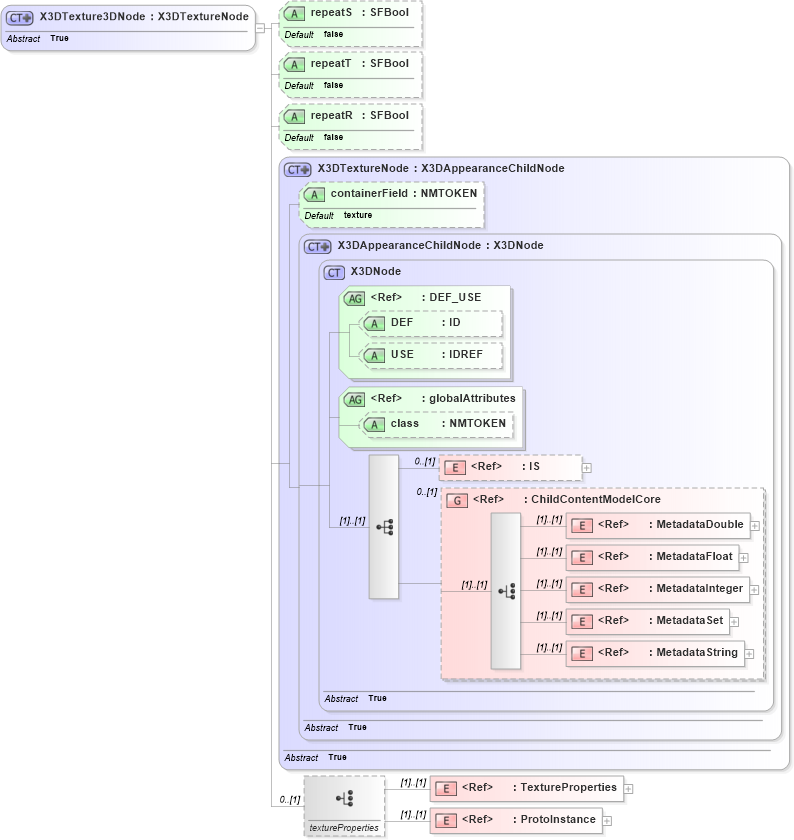

Collapse XSD Schema Diagram:
Drilldown into ProtoInstance in schema x3d-3_2_xsd Drilldown into TextureProperties in schema x3d-3_2_xsd Drilldown into MetadataString in schema x3d-3_2_xsd Drilldown into MetadataSet in schema x3d-3_2_xsd Drilldown into MetadataInteger in schema x3d-3_2_xsd Drilldown into MetadataFloat in schema x3d-3_2_xsd Drilldown into MetadataDouble in schema x3d-3_2_xsd Drilldown into ChildContentModelCore in schema x3d-3_2_xsd Drilldown into IS in schema x3d-3_2_xsd Drilldown into class in schema x3d-3_2_xsd Drilldown into globalAttributes in schema x3d-3_2_xsd Drilldown into USE in schema x3d-3_2_xsd Drilldown into DEF in schema x3d-3_2_xsd Drilldown into DEF_USE in schema x3d-3_2_xsd Drilldown into X3DNode in schema x3d-3_2_xsd Drilldown into X3DAppearanceChildNode in schema x3d-3_2_xsd Drilldown into containerField in schema x3d-3_2_xsd Drilldown into X3DTextureNode in schema x3d-3_2_xsd Drilldown into repeatR in schema x3d-3_2_xsd Drilldown into repeatT in schema x3d-3_2_xsd Drilldown into repeatS in schema x3d-3_2_xsdXSD Diagram of X3DTexture3DNode in schema x3d-3_2_xsd (Web3D - Open Standards for Real-Time 3D Communication)
Collapse XSD Schema Code:
<xs:complexType name="X3DTexture3DNode" abstract="true" mixed="false">
    <xs:annotation>
        <xs:appinfo />
        <xs:documentation source="http://www.web3d.org/x3d/specifications/ISO-IEC-19775-Amendment1-X3DAbstractSpecification/Part01/components/texture3D.html#X3DTexture3DNode" />
    </xs:annotation>
    <xs:complexContent mixed="false">
        <xs:extension base="X3DTextureNode">
            <xs:choice minOccurs="0">
                <xs:annotation>
                    <xs:documentation>textureProperties</xs:documentation>
                </xs:annotation>
                <xs:element ref="TextureProperties" />
                <xs:element ref="ProtoInstance" />
            </xs:choice>
            <xs:attribute name="repeatS" type="SFBool" default="false" />
            <xs:attribute name="repeatT" type="SFBool" default="false" />
            <xs:attribute name="repeatR" type="SFBool" default="false" />
        </xs:extension>
    </xs:complexContent>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
IS IS 0 (1)
MetadataDouble MetadataDouble (1) (1)
MetadataFloat MetadataFloat (1) (1)
MetadataInteger MetadataInteger (1) (1)
MetadataSet MetadataSet (1) (1)
MetadataString MetadataString (1) (1)
TextureProperties TextureProperties (1) (1)
ProtoInstance ProtoInstance (1) (1)
<xs:group> ChildContentModelCore 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
DEF DEF (Optional)
USE USE (Optional)
class class (Optional)
containerField containerField texture (Optional)
repeatS repeatS false (Optional)
repeatT repeatT false (Optional)
repeatR repeatR false (Optional)
Collapse Derivation Tree:
Collapse References:
ComposedTexture3D, ImageTexture3D, PixelTexture3D
