Definition Type: Element
Name: extended
Namespace: http://www.xbrl.org/2003/XLink
Type: xl:extendedType
Containing Schema: xl-2003-12-31.xsd
Abstract True
Documentation:
Abstract extended link element at head of extended link substitution group.

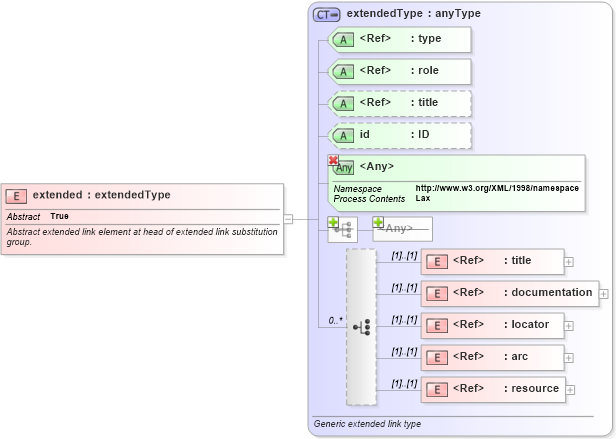

Collapse XSD Schema Diagram:
Drilldown into resource in schema xl-2003-12-31_xsd Drilldown into arc in schema xl-2003-12-31_xsd Drilldown into locator in schema xl-2003-12-31_xsd Drilldown into documentation in schema xl-2003-12-31_xsd Drilldown into title in schema xl-2003-12-31_xsd Drilldown into id in schema xl-2003-12-31_xsd Drilldown into title in schema xlink_xsd Drilldown into role in schema xlink_xsd Drilldown into type in schema xlink_xsd Drilldown into extendedType in schema xl-2003-12-31_xsdXSD Diagram of extended in schema xl-2003-12-31_xsd (XBRL eXtensible Business Reporting Language)
Collapse XSD Schema Code:
<element name="extended" type="xl:extendedType" abstract="true">
    <annotation>
        <documentation>
      Abstract extended link element at head of extended link substitution group.
      </documentation>
    </annotation>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
title xl:title (1) (1)
documentation xl:documentation (1) (1)
locator xl:locator (1) (1)
arc xl:arc (1) (1)
resource xl:resource (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
type xlink:type Required
role xlink:role Required
title xlink:title Optional
id xl:id Optional
<anyAttribute>
<anyAttribute> Allowed namespace: 'http://www.w3.org/XML/1998/namespace'
Collapse Derivation Tree:
