Definition Type: ComplexType
Name: fractionItemType
Namespace: http://www.xbrl.org/2003/instance
Containing Schema: xbrl-instance-2003-12-31.xsd
Abstract

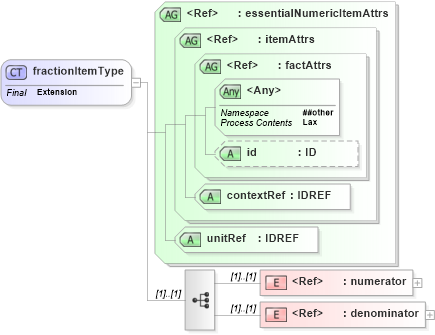

Collapse XSD Schema Diagram:
Drilldown into denominator in schema xbrl-instance-2003-12-31_xsd Drilldown into numerator in schema xbrl-instance-2003-12-31_xsd Drilldown into unitRef in schema xbrl-instance-2003-12-31_xsd Drilldown into contextRef in schema xbrl-instance-2003-12-31_xsd Drilldown into id in schema xbrl-instance-2003-12-31_xsd Drilldown into factAttrs in schema xbrl-instance-2003-12-31_xsd Drilldown into itemAttrs in schema xbrl-instance-2003-12-31_xsd Drilldown into essentialNumericItemAttrs in schema xbrl-instance-2003-12-31_xsdXSD Diagram of fractionItemType in schema xbrl-instance-2003-12-31_xsd (XBRL eXtensible Business Reporting Language)
Collapse XSD Schema Code:
<complexType name="fractionItemType" final="extension">
    <sequence>
        <element ref="xbrli:numerator" />
        <element ref="xbrli:denominator" />
    </sequence>
    <attributeGroup ref="xbrli:essentialNumericItemAttrs" />
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
numerator xbrli:numerator (1) (1)
denominator xbrli:denominator (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id xbrli:id Optional
contextRef xbrli:contextRef Required
unitRef xbrli:unitRef Required
<anyAttribute> Allowed namespace: '##other'
