Documentation for XBRL eXtensible Business Reporting Language
Definition Type: ComplexType
Name: hexBinaryItemType
Namespace: http://www.xbrl.org/2003/instance
Type: hexBinary:http://www.w3.org/2001/XMLSchema
Containing Schema: xbrl-instance-2003-12-31.xsd
Abstract

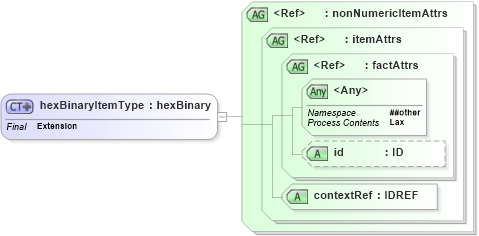

Collapse XSD Schema Diagram:
Drilldown into contextRef in schema xbrl-instance-2003-12-31_xsd Drilldown into id in schema xbrl-instance-2003-12-31_xsd Drilldown into factAttrs in schema xbrl-instance-2003-12-31_xsd Drilldown into itemAttrs in schema xbrl-instance-2003-12-31_xsd Drilldown into nonNumericItemAttrs in schema xbrl-instance-2003-12-31_xsdXSD Diagram of hexBinaryItemType in schema xbrl-instance-2003-12-31_xsd (XBRL eXtensible Business Reporting Language)
Collapse XSD Schema Code:
<complexType name="hexBinaryItemType" final="extension">
    <simpleContent>
        <extension base="hexBinary">
            <attributeGroup ref="xbrli:nonNumericItemAttrs" />
        </extension>
    </simpleContent>
</complexType>
Collapse Child Attributes:
Name Type Default Value Use
id xbrli:id Optional
contextRef xbrli:contextRef Required
<anyAttribute> Allowed namespace: '##other'
