Documentation for XBRL eXtensible Business Reporting Language
Definition Type: Element
Name: label
Namespace: http://www.xbrl.org/2003/linkbase
Type: xl:resourceType
Containing Schema: xbrl-linkbase-2003-12-31.xsd
Abstract
Documentation:
Definition of the label resource element.

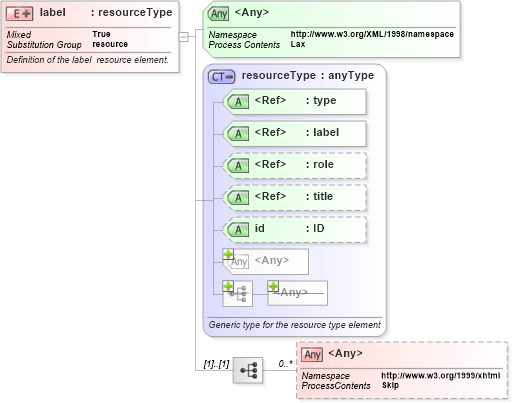

Collapse XSD Schema Diagram:
Drilldown into id in schema xl-2003-12-31_xsd Drilldown into title in schema xlink_xsd Drilldown into role in schema xlink_xsd Drilldown into label in schema xlink_xsd Drilldown into type in schema xlink_xsd Drilldown into resourceType in schema xl-2003-12-31_xsdXSD Diagram of label in schema xbrl-linkbase-2003-12-31_xsd (XBRL eXtensible Business Reporting Language)
Collapse XSD Schema Code:
<element name="label" substitutionGroup="xl:resource">
    <annotation>
        <documentation>
      Definition of the label  resource element.
      </documentation>
    </annotation>
    <complexType mixed="true">
        <complexContent mixed="true">
            <extension base="xl:resourceType">
                <sequence>
                    <any minOccurs="0" maxOccurs="unbounded" namespace="http://www.w3.org/1999/xhtml" processContents="skip" />
                </sequence>
                <anyAttribute namespace="http://www.w3.org/XML/1998/namespace" processContents="lax" />
            </extension>
        </complexContent>
    </complexType>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
<xs:any> Allowed namespace: 'http://www.w3.org/1999/xhtml' 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
type xlink:type Required
label xlink:label Required
role xlink:role Optional
title xlink:title Optional
id xl:id Optional
<anyAttribute>
<anyAttribute> Allowed namespace: 'http://www.w3.org/XML/1998/namespace'
Collapse Derivation Tree:
Collapse References:
xl:resource
