Documentation for XBRL eXtensible Business Reporting Language
Definition Type: Element
Name: referenceArc
Namespace: http://www.xbrl.org/2003/linkbase
Type: xl:arcType
Containing Schema: xbrl-linkbase-2003-12-31.xsd
Abstract
Documentation:
Concrete arc for use in reference extended links.

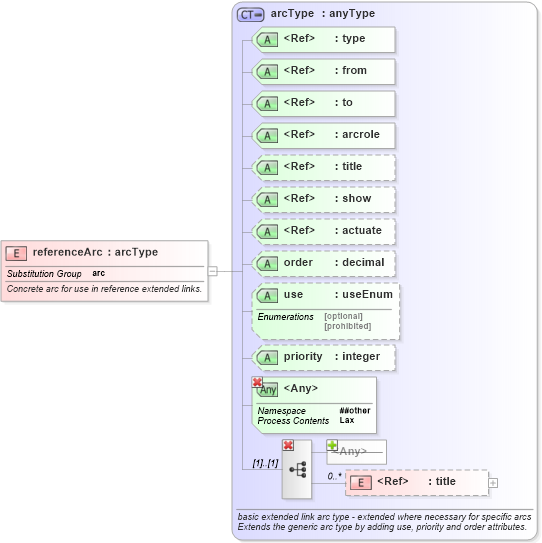

Collapse XSD Schema Diagram:
Drilldown into title in schema xl-2003-12-31_xsd Drilldown into priority in schema xl-2003-12-31_xsd Drilldown into use in schema xl-2003-12-31_xsd Drilldown into order in schema xl-2003-12-31_xsd Drilldown into actuate in schema xlink_xsd Drilldown into show in schema xlink_xsd Drilldown into title in schema xlink_xsd Drilldown into arcrole in schema xlink_xsd Drilldown into to in schema xlink_xsd Drilldown into from in schema xlink_xsd Drilldown into type in schema xlink_xsd Drilldown into arcType in schema xl-2003-12-31_xsdXSD Diagram of referenceArc in schema xbrl-linkbase-2003-12-31_xsd (XBRL eXtensible Business Reporting Language)
Collapse XSD Schema Code:
<element name="referenceArc" type="xl:arcType" substitutionGroup="xl:arc">
    <annotation>
        <documentation>
      Concrete arc for use in reference extended links.
      </documentation>
    </annotation>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
title xl:title 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
type xlink:type Required
from xlink:from Required
to xlink:to Required
arcrole xlink:arcrole Required
title xlink:title Optional
show xlink:show Optional
actuate xlink:actuate Optional
order xl:order Optional
use xl:use Optional
priority xl:priority Optional
<anyAttribute>
<anyAttribute> Allowed namespace: '##other'
Collapse Derivation Tree:
Collapse References:
xl:arc
