Definition Type: Element
Name: simple
Namespace: http://www.xbrl.org/2003/XLink
Type: xl:simpleType
Containing Schema: xl-2003-12-31.xsd
Abstract True
Documentation:
The abstract element at the head of the simple link substitution group.

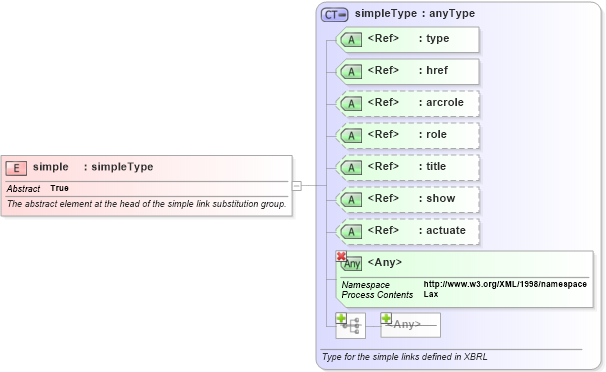

Collapse XSD Schema Diagram:
Drilldown into actuate in schema xlink_xsd Drilldown into show in schema xlink_xsd Drilldown into title in schema xlink_xsd Drilldown into role in schema xlink_xsd Drilldown into arcrole in schema xlink_xsd Drilldown into href in schema xlink_xsd Drilldown into type in schema xlink_xsd Drilldown into simpleType in schema xl-2003-12-31_xsdXSD Diagram of simple in schema xl-2003-12-31_xsd (XBRL eXtensible Business Reporting Language)
Collapse XSD Schema Code:
<element name="simple" type="xl:simpleType" abstract="true">
    <annotation>
        <documentation>
      The abstract element at the head of the simple link substitution group.
      </documentation>
    </annotation>
</element>
Collapse Child Attributes:
Name Type Default Value Use
type xlink:type Required
href xlink:href Required
arcrole xlink:arcrole Optional
role xlink:role Optional
title xlink:title Optional
show xlink:show Optional
actuate xlink:actuate Optional
<anyAttribute>
<anyAttribute> Allowed namespace: 'http://www.w3.org/XML/1998/namespace'
Collapse Derivation Tree:
