Documentation for Acord - Property & Casualty/Surety Standards Program
Definition Type: ComplexType
Name: AccidentViolation_Type
Namespace: http://www.ACORD.org/standards/PC_Surety/ACORD1/xml/
Containing Schema: acord-pcs-v1_16_0-ns-nodoc-codes.xsd
Abstract

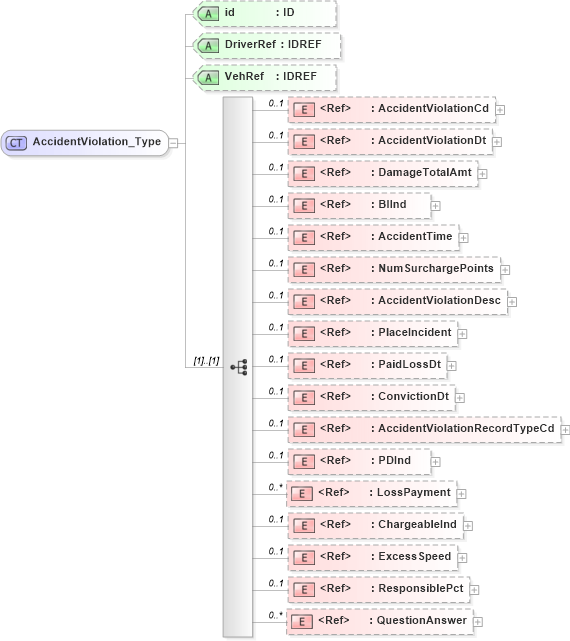

Collapse XSD Schema Diagram:
Drilldown into QuestionAnswer in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into ResponsiblePct in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into ExcessSpeed in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into ChargeableInd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into LossPayment in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into PDInd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into AccidentViolationRecordTypeCd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into ConvictionDt in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into PaidLossDt in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into PlaceIncident in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into AccidentViolationDesc in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into NumSurchargePoints in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into AccidentTime in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into BIInd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into DamageTotalAmt in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into AccidentViolationDt in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into AccidentViolationCd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into VehRef in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into DriverRef in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into id in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsdXSD Diagram of AccidentViolation_Type in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd (Acord - Property & Casualty/Surety Standards Program)
Collapse XSD Schema Code:
<xsd:complexType name="AccidentViolation_Type">
    <xsd:sequence>
        <xsd:element ref="AccidentViolationCd" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="AccidentViolationDt" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="DamageTotalAmt" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="BIInd" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="AccidentTime" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="NumSurchargePoints" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="AccidentViolationDesc" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="PlaceIncident" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="PaidLossDt" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="ConvictionDt" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="AccidentViolationRecordTypeCd" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="PDInd" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="LossPayment" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="ChargeableInd" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="ExcessSpeed" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="ResponsiblePct" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="QuestionAnswer" minOccurs="0" maxOccurs="unbounded" />
    </xsd:sequence>
    <xsd:attribute name="id" type="ID" />
    <xsd:attribute name="DriverRef" type="IDREF" />
    <xsd:attribute name="VehRef" type="IDREF" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
AccidentViolationCd nsC:AccidentViolationCd 0 1
AccidentViolationDt nsC:AccidentViolationDt 0 1
DamageTotalAmt nsC:DamageTotalAmt 0 1
BIInd nsC:BIInd 0 1
AccidentTime nsC:AccidentTime 0 1
NumSurchargePoints nsC:NumSurchargePoints 0 1
AccidentViolationDesc nsC:AccidentViolationDesc 0 1
PlaceIncident nsC:PlaceIncident 0 1
PaidLossDt nsC:PaidLossDt 0 1
ConvictionDt nsC:ConvictionDt 0 1
AccidentViolationRecordTypeCd nsC:AccidentViolationRecordTypeCd 0 1
PDInd nsC:PDInd 0 1
LossPayment nsC:LossPayment 0 unbounded
ChargeableInd nsC:ChargeableInd 0 1
ExcessSpeed nsC:ExcessSpeed 0 1
ResponsiblePct nsC:ResponsiblePct 0 1
QuestionAnswer nsC:QuestionAnswer 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
id nsC:id (Optional)
DriverRef nsC:DriverRef (Optional)
VehRef nsC:VehRef (Optional)
Collapse Derivation Tree:
Collapse References:
nsC:AccidentViolation
