Definition Type: ComplexType
Name: ActivityNoteRs_Type
Namespace: http://www.ACORD.org/standards/PC_Surety/ACORD1/xml/
Containing Schema: acord-pcs-v1_16_0-ns-nodoc-codes.xsd
Abstract

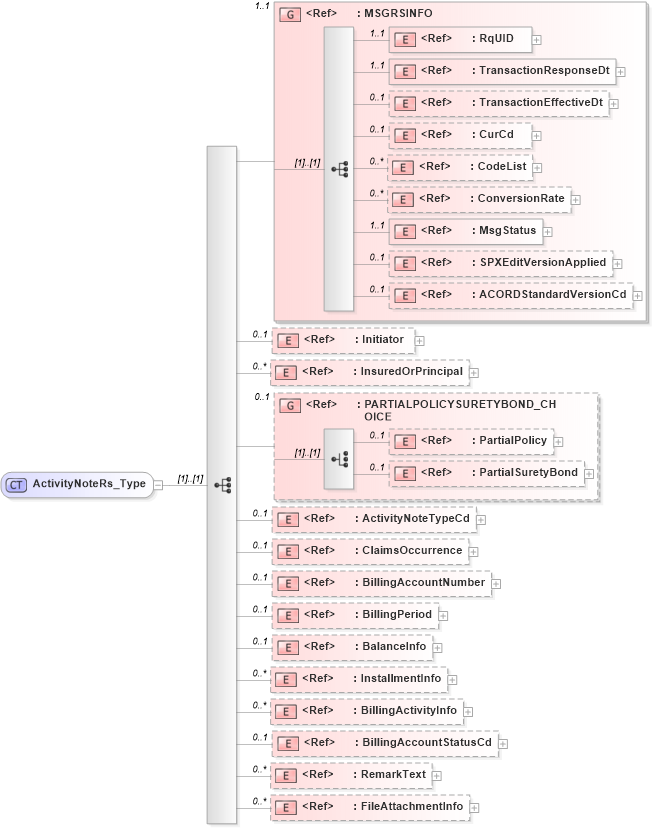

Collapse XSD Schema Diagram:
Drilldown into FileAttachmentInfo in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into RemarkText in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into BillingAccountStatusCd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into BillingActivityInfo in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into InstallmentInfo in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into BalanceInfo in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into BillingPeriod in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into BillingAccountNumber in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into ClaimsOccurrence in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into ActivityNoteTypeCd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into PartialSuretyBond in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into PartialPolicy in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into PARTIALPOLICYSURETYBOND_CHOICE in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into InsuredOrPrincipal in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into Initiator in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into ACORDStandardVersionCd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into SPXEditVersionApplied in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into MsgStatus in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into ConversionRate in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into CodeList in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into CurCd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into TransactionEffectiveDt in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into TransactionResponseDt in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into RqUID in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into MSGRSINFO in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsdXSD Diagram of ActivityNoteRs_Type in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd (Acord - Property & Casualty/Surety Standards Program)
Collapse XSD Schema Code:
<xsd:complexType name="ActivityNoteRs_Type">
    <xsd:sequence>
        <xsd:group ref="MSGRSINFO" minOccurs="1" maxOccurs="1" />
        <xsd:element ref="Initiator" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="InsuredOrPrincipal" minOccurs="0" maxOccurs="unbounded" />
        <xsd:group ref="PARTIALPOLICYSURETYBOND_CHOICE" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="ActivityNoteTypeCd" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="ClaimsOccurrence" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="BillingAccountNumber" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="BillingPeriod" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="BalanceInfo" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="InstallmentInfo" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="BillingActivityInfo" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="BillingAccountStatusCd" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="RemarkText" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="FileAttachmentInfo" minOccurs="0" maxOccurs="unbounded" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
RqUID nsC:RqUID 1 1
TransactionResponseDt nsC:TransactionResponseDt 1 1
TransactionEffectiveDt nsC:TransactionEffectiveDt 0 1
CurCd nsC:CurCd 0 1
CodeList nsC:CodeList 0 unbounded
ConversionRate nsC:ConversionRate 0 unbounded
MsgStatus nsC:MsgStatus 1 1
SPXEditVersionApplied nsC:SPXEditVersionApplied 0 1
ACORDStandardVersionCd nsC:ACORDStandardVersionCd 0 1
Initiator nsC:Initiator 0 1
InsuredOrPrincipal nsC:InsuredOrPrincipal 0 unbounded
PartialPolicy nsC:PartialPolicy 0 1
PartialSuretyBond nsC:PartialSuretyBond 0 1
ActivityNoteTypeCd nsC:ActivityNoteTypeCd 0 1
ClaimsOccurrence nsC:ClaimsOccurrence 0 1
BillingAccountNumber nsC:BillingAccountNumber 0 1
BillingPeriod nsC:BillingPeriod 0 1
BalanceInfo nsC:BalanceInfo 0 1
InstallmentInfo nsC:InstallmentInfo 0 unbounded
BillingActivityInfo nsC:BillingActivityInfo 0 unbounded
BillingAccountStatusCd nsC:BillingAccountStatusCd 0 1
RemarkText nsC:RemarkText 0 unbounded
FileAttachmentInfo nsC:FileAttachmentInfo 0 unbounded
<xs:group> nsC:MSGRSINFO 1 1
<xs:group> nsC:PARTIALPOLICYSURETYBOND_CHOICE 0 1
Collapse Derivation Tree:
Collapse References:
nsC:ActivityNoteRs
