Documentation for Acord - Property & Casualty/Surety Standards Program
Definition Type: ComplexType
Name: Addr_Type
Namespace: http://www.ACORD.org/standards/PC_Surety/ACORD1/xml/
Containing Schema: acord-pcs-v1_16_0-ns-nodoc-codes.xsd
Abstract

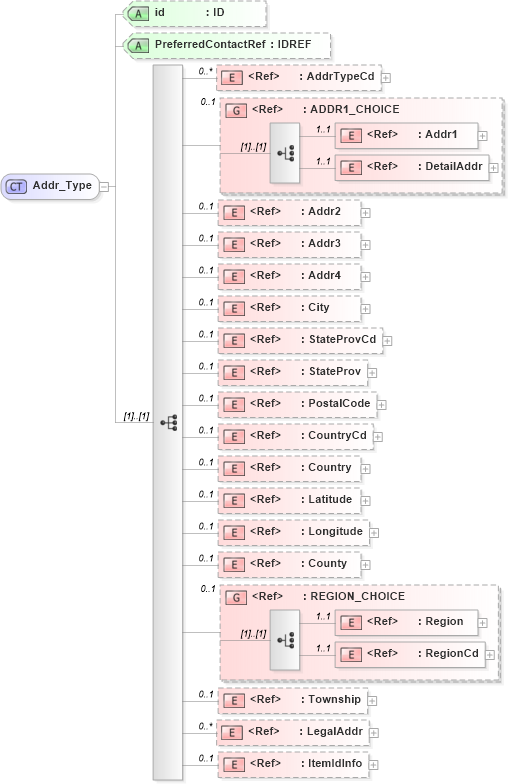

Collapse XSD Schema Diagram:
Drilldown into ItemIdInfo in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into LegalAddr in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into Township in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into RegionCd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into Region in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into REGION_CHOICE in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into County in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into Longitude in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into Latitude in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into Country in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into CountryCd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into PostalCode in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into StateProv in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into StateProvCd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into City in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into Addr4 in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into Addr3 in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into Addr2 in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into DetailAddr in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into Addr1 in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into ADDR1_CHOICE in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into AddrTypeCd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into PreferredContactRef in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into id in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsdXSD Diagram of Addr_Type in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd (Acord - Property & Casualty/Surety Standards Program)
Collapse XSD Schema Code:
<xsd:complexType name="Addr_Type">
    <xsd:sequence>
        <xsd:element ref="AddrTypeCd" minOccurs="0" maxOccurs="unbounded" />
        <xsd:group ref="ADDR1_CHOICE" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="Addr2" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="Addr3" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="Addr4" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="City" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="StateProvCd" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="StateProv" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="PostalCode" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="CountryCd" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="Country" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="Latitude" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="Longitude" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="County" minOccurs="0" maxOccurs="1" />
        <xsd:group ref="REGION_CHOICE" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="Township" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="LegalAddr" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="ItemIdInfo" minOccurs="0" maxOccurs="1" />
    </xsd:sequence>
    <xsd:attribute name="id" type="ID" />
    <xsd:attribute name="PreferredContactRef" type="IDREF" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
AddrTypeCd nsC:AddrTypeCd 0 unbounded
Addr1 nsC:Addr1 1 1
DetailAddr nsC:DetailAddr 1 1
Addr2 nsC:Addr2 0 1
Addr3 nsC:Addr3 0 1
Addr4 nsC:Addr4 0 1
City nsC:City 0 1
StateProvCd nsC:StateProvCd 0 1
StateProv nsC:StateProv 0 1
PostalCode nsC:PostalCode 0 1
CountryCd nsC:CountryCd 0 1
Country nsC:Country 0 1
Latitude nsC:Latitude 0 1
Longitude nsC:Longitude 0 1
County nsC:County 0 1
Region nsC:Region 1 1
RegionCd nsC:RegionCd 1 1
Township nsC:Township 0 1
LegalAddr nsC:LegalAddr 0 unbounded
ItemIdInfo nsC:ItemIdInfo 0 1
<xs:group> nsC:ADDR1_CHOICE 0 1
<xs:group> nsC:REGION_CHOICE 0 1
Collapse Child Attributes:
Name Type Default Value Use
id nsC:id (Optional)
PreferredContactRef nsC:PreferredContactRef (Optional)
Collapse Derivation Tree:
Collapse References:
nsC:Addr
