Documentation for Acord - Property & Casualty/Surety Standards Program
Definition Type: ComplexType
Name: AgencyQuestionnaireNotificationAddRq_Type
Namespace: http://www.ACORD.org/standards/PC_Surety/ACORD1/xml/
Containing Schema: acord-pcs-v1_16_0-ns-nodoc-codes.xsd
Abstract

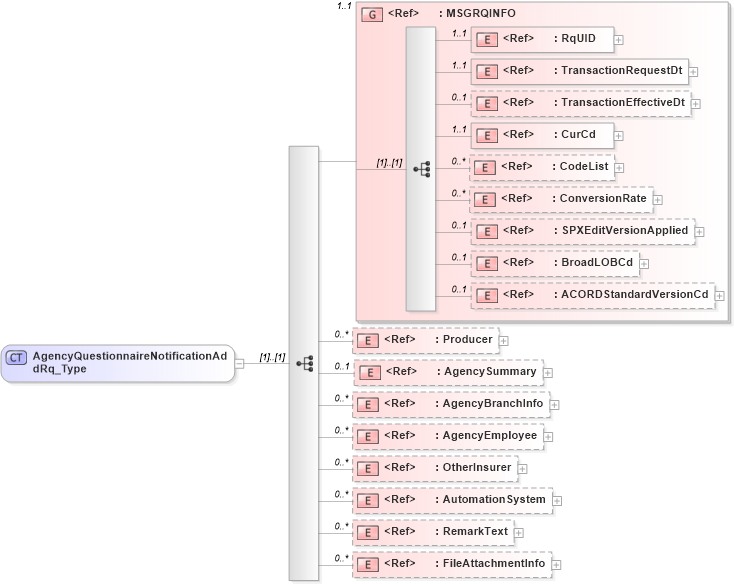

Collapse XSD Schema Diagram:
Drilldown into FileAttachmentInfo in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into RemarkText in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into AutomationSystem in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into OtherInsurer in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into AgencyEmployee in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into AgencyBranchInfo in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into AgencySummary in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into Producer in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into ACORDStandardVersionCd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into BroadLOBCd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into SPXEditVersionApplied in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into ConversionRate in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into CodeList in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into CurCd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into TransactionEffectiveDt in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into TransactionRequestDt in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into RqUID in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into MSGRQINFO in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsdXSD Diagram of AgencyQuestionnaireNotificationAddRq_Type in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd (Acord - Property & Casualty/Surety Standards Program)
Collapse XSD Schema Code:
<xsd:complexType name="AgencyQuestionnaireNotificationAddRq_Type">
    <xsd:sequence>
        <xsd:group ref="MSGRQINFO" minOccurs="1" maxOccurs="1" />
        <xsd:element ref="Producer" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="AgencySummary" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="AgencyBranchInfo" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="AgencyEmployee" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="OtherInsurer" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="AutomationSystem" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="RemarkText" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="FileAttachmentInfo" minOccurs="0" maxOccurs="unbounded" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
RqUID nsC:RqUID 1 1
TransactionRequestDt nsC:TransactionRequestDt 1 1
TransactionEffectiveDt nsC:TransactionEffectiveDt 0 1
CurCd nsC:CurCd 1 1
CodeList nsC:CodeList 0 unbounded
ConversionRate nsC:ConversionRate 0 unbounded
SPXEditVersionApplied nsC:SPXEditVersionApplied 0 1
BroadLOBCd nsC:BroadLOBCd 0 1
ACORDStandardVersionCd nsC:ACORDStandardVersionCd 0 1
Producer nsC:Producer 0 unbounded
AgencySummary nsC:AgencySummary 0 1
AgencyBranchInfo nsC:AgencyBranchInfo 0 unbounded
AgencyEmployee nsC:AgencyEmployee 0 unbounded
OtherInsurer nsC:OtherInsurer 0 unbounded
AutomationSystem nsC:AutomationSystem 0 unbounded
RemarkText nsC:RemarkText 0 unbounded
FileAttachmentInfo nsC:FileAttachmentInfo 0 unbounded
<xs:group> nsC:MSGRQINFO 1 1
Collapse Derivation Tree:
Collapse References:
nsC:AgencyQuestionnaireNotificationAddRq
