Definition Type: ComplexType
Name: AgriculturalAviation_Type
Namespace: http://www.ACORD.org/standards/PC_Surety/ACORD1/xml/
Containing Schema: acord-pcs-v1_16_0-ns-nodoc-codes.xsd
Abstract

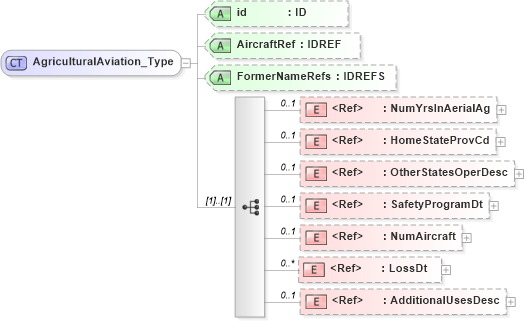

Collapse XSD Schema Diagram:
Drilldown into AdditionalUsesDesc in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into LossDt in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into NumAircraft in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into SafetyProgramDt in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into OtherStatesOperDesc in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into HomeStateProvCd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into NumYrsInAerialAg in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into FormerNameRefs in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into AircraftRef in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into id in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsdXSD Diagram of AgriculturalAviation_Type in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd (Acord - Property & Casualty/Surety Standards Program)
Collapse XSD Schema Code:
<xsd:complexType name="AgriculturalAviation_Type">
    <xsd:sequence>
        <xsd:element ref="NumYrsInAerialAg" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="HomeStateProvCd" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="OtherStatesOperDesc" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="SafetyProgramDt" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="NumAircraft" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="LossDt" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="AdditionalUsesDesc" minOccurs="0" maxOccurs="1" />
    </xsd:sequence>
    <xsd:attribute name="id" type="ID" />
    <xsd:attribute name="AircraftRef" type="IDREF" />
    <xsd:attribute name="FormerNameRefs" type="IDREFS" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
NumYrsInAerialAg nsC:NumYrsInAerialAg 0 1
HomeStateProvCd nsC:HomeStateProvCd 0 1
OtherStatesOperDesc nsC:OtherStatesOperDesc 0 1
SafetyProgramDt nsC:SafetyProgramDt 0 1
NumAircraft nsC:NumAircraft 0 1
LossDt nsC:LossDt 0 unbounded
AdditionalUsesDesc nsC:AdditionalUsesDesc 0 1
Collapse Child Attributes:
Name Type Default Value Use
id nsC:id (Optional)
AircraftRef nsC:AircraftRef (Optional)
FormerNameRefs nsC:FormerNameRefs (Optional)
Collapse Derivation Tree:
Collapse References:
nsC:AgriculturalAviation
