Documentation for Acord - Property & Casualty/Surety Standards Program
Definition Type: ComplexType
Name: AutoLossInfo_Type
Namespace: http://www.ACORD.org/standards/PC_Surety/ACORD1/xml/
Containing Schema: acord-pcs-v1_16_0-ns-nodoc-codes.xsd
Abstract

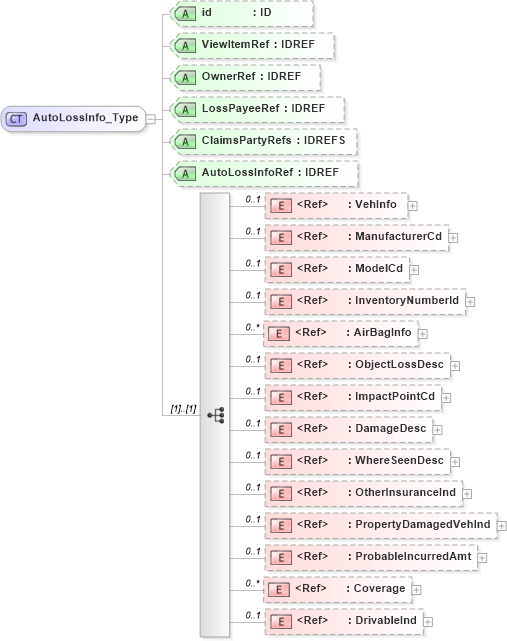

Collapse XSD Schema Diagram:
Drilldown into DrivableInd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into Coverage in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into ProbableIncurredAmt in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into PropertyDamagedVehInd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into OtherInsuranceInd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into WhereSeenDesc in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into DamageDesc in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into ImpactPointCd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into ObjectLossDesc in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into AirBagInfo in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into InventoryNumberId in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into ModelCd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into ManufacturerCd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into VehInfo in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into AutoLossInfoRef in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into ClaimsPartyRefs in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into LossPayeeRef in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into OwnerRef in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into ViewItemRef in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into id in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsdXSD Diagram of AutoLossInfo_Type in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd (Acord - Property & Casualty/Surety Standards Program)
Collapse XSD Schema Code:
<xsd:complexType name="AutoLossInfo_Type">
    <xsd:sequence>
        <xsd:element ref="VehInfo" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="ManufacturerCd" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="ModelCd" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="InventoryNumberId" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="AirBagInfo" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="ObjectLossDesc" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="ImpactPointCd" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="DamageDesc" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="WhereSeenDesc" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="OtherInsuranceInd" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="PropertyDamagedVehInd" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="ProbableIncurredAmt" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="Coverage" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="DrivableInd" minOccurs="0" maxOccurs="1" />
    </xsd:sequence>
    <xsd:attribute name="id" type="ID" />
    <xsd:attribute name="ViewItemRef" type="IDREF" />
    <xsd:attribute name="OwnerRef" type="IDREF" />
    <xsd:attribute name="LossPayeeRef" type="IDREF" />
    <xsd:attribute name="ClaimsPartyRefs" type="IDREFS" />
    <xsd:attribute name="AutoLossInfoRef" type="IDREF" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
VehInfo nsC:VehInfo 0 1
ManufacturerCd nsC:ManufacturerCd 0 1
ModelCd nsC:ModelCd 0 1
InventoryNumberId nsC:InventoryNumberId 0 1
AirBagInfo nsC:AirBagInfo 0 unbounded
ObjectLossDesc nsC:ObjectLossDesc 0 1
ImpactPointCd nsC:ImpactPointCd 0 1
DamageDesc nsC:DamageDesc 0 1
WhereSeenDesc nsC:WhereSeenDesc 0 1
OtherInsuranceInd nsC:OtherInsuranceInd 0 1
PropertyDamagedVehInd nsC:PropertyDamagedVehInd 0 1
ProbableIncurredAmt nsC:ProbableIncurredAmt 0 1
Coverage nsC:Coverage 0 unbounded
DrivableInd nsC:DrivableInd 0 1
Collapse Child Attributes:
Name Type Default Value Use
id nsC:id (Optional)
ViewItemRef nsC:ViewItemRef (Optional)
OwnerRef nsC:OwnerRef (Optional)
LossPayeeRef nsC:LossPayeeRef (Optional)
ClaimsPartyRefs nsC:ClaimsPartyRefs (Optional)
AutoLossInfoRef nsC:AutoLossInfoRef (Optional)
Collapse Derivation Tree:
Collapse References:
nsC:AutoLossInfo
