Documentation for Acord - Property & Casualty/Surety Standards Program
Definition Type: ComplexType
Name: BaseSvcRq_Type
Namespace: http://www.ACORD.org/standards/PC_Surety/ACORD1/xml/
Containing Schema: acord-pcs-v1_16_0-ns-nodoc-codes.xsd
Abstract

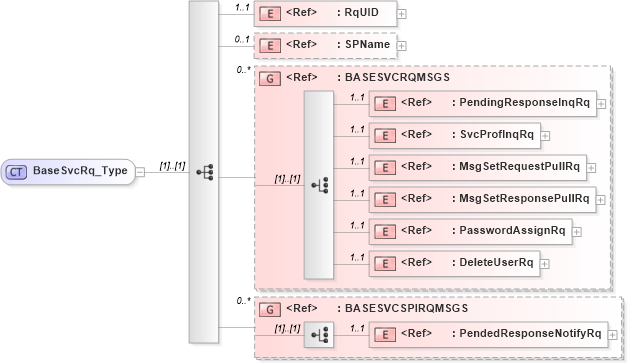

Collapse XSD Schema Diagram:
Drilldown into PendedResponseNotifyRq in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into BASESVCSPIRQMSGS in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into DeleteUserRq in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into PasswordAssignRq in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into MsgSetResponsePullRq in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into MsgSetRequestPullRq in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into SvcProfInqRq in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into PendingResponseInqRq in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into BASESVCRQMSGS in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into SPName in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into RqUID in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsdXSD Diagram of BaseSvcRq_Type in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd (Acord - Property & Casualty/Surety Standards Program)
Collapse XSD Schema Code:
<xsd:complexType name="BaseSvcRq_Type">
    <xsd:sequence>
        <xsd:element ref="RqUID" minOccurs="1" maxOccurs="1" />
        <xsd:element ref="SPName" minOccurs="0" maxOccurs="1" />
        <xsd:group ref="BASESVCRQMSGS" minOccurs="0" maxOccurs="unbounded" />
        <xsd:group ref="BASESVCSPIRQMSGS" minOccurs="0" maxOccurs="unbounded" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
RqUID nsC:RqUID 1 1
SPName nsC:SPName 0 1
PendingResponseInqRq nsC:PendingResponseInqRq 1 1
SvcProfInqRq nsC:SvcProfInqRq 1 1
MsgSetRequestPullRq nsC:MsgSetRequestPullRq 1 1
MsgSetResponsePullRq nsC:MsgSetResponsePullRq 1 1
PasswordAssignRq nsC:PasswordAssignRq 1 1
DeleteUserRq nsC:DeleteUserRq 1 1
PendedResponseNotifyRq nsC:PendedResponseNotifyRq 1 1
<xs:group> nsC:BASESVCRQMSGS 0 unbounded
<xs:group> nsC:BASESVCSPIRQMSGS 0 unbounded
Collapse Derivation Tree:
Collapse References:
nsC:BaseSvcRq
