Documentation for Acord - Property & Casualty/Surety Standards Program
Definition Type: ComplexType
Name: BaseSvcRs_Type
Namespace: http://www.ACORD.org/standards/PC_Surety/ACORD1/xml/
Containing Schema: acord-pcs-v1_16_0-ns-nodoc-codes.xsd
Abstract
Collapse XSD Schema Diagram:

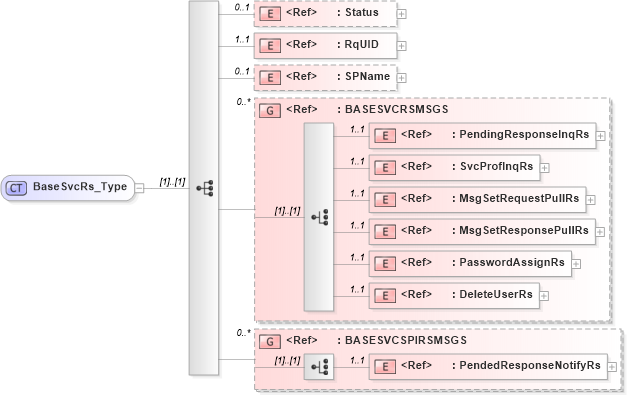

Drilldown into PendedResponseNotifyRs in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into BASESVCSPIRSMSGS in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into DeleteUserRs in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into PasswordAssignRs in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into MsgSetResponsePullRs in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into MsgSetRequestPullRs in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into SvcProfInqRs in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into PendingResponseInqRs in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into BASESVCRSMSGS in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into SPName in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into RqUID in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into Status in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsdXSD Diagram of BaseSvcRs_Type in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd (Acord - Property & Casualty/Surety Standards Program)
Collapse XSD Schema Code:
<xsd:complexType name="BaseSvcRs_Type">
    <xsd:sequence>
        <xsd:element ref="Status" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="RqUID" minOccurs="1" maxOccurs="1" />
        <xsd:element ref="SPName" minOccurs="0" maxOccurs="1" />
        <xsd:group ref="BASESVCRSMSGS" minOccurs="0" maxOccurs="unbounded" />
        <xsd:group ref="BASESVCSPIRSMSGS" minOccurs="0" maxOccurs="unbounded" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Status nsC:Status 0 1
RqUID nsC:RqUID 1 1
SPName nsC:SPName 0 1
PendingResponseInqRs nsC:PendingResponseInqRs 1 1
SvcProfInqRs nsC:SvcProfInqRs 1 1
MsgSetRequestPullRs nsC:MsgSetRequestPullRs 1 1
MsgSetResponsePullRs nsC:MsgSetResponsePullRs 1 1
PasswordAssignRs nsC:PasswordAssignRs 1 1
DeleteUserRs nsC:DeleteUserRs 1 1
PendedResponseNotifyRs nsC:PendedResponseNotifyRs 1 1
<xs:group> nsC:BASESVCRSMSGS 0 unbounded
<xs:group> nsC:BASESVCSPIRSMSGS 0 unbounded
Collapse Derivation Tree:
Collapse References:
nsC:BaseSvcRs
