Documentation for Acord - Property & Casualty/Surety Standards Program
Definition Type: ComplexType
Name: BillingActivityInfo_Type
Namespace: http://www.ACORD.org/standards/PC_Surety/ACORD1/xml/
Containing Schema: acord-pcs-v1_16_0-ns-nodoc-codes.xsd
Abstract

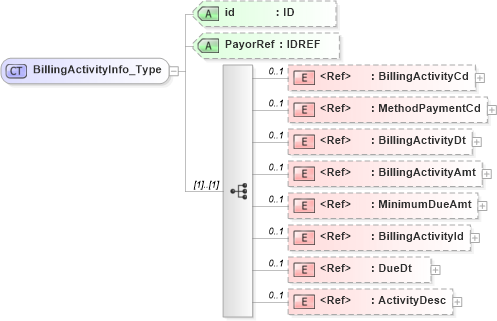

Collapse XSD Schema Diagram:
Drilldown into ActivityDesc in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into DueDt in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into BillingActivityId in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into MinimumDueAmt in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into BillingActivityAmt in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into BillingActivityDt in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into MethodPaymentCd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into BillingActivityCd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into PayorRef in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into id in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsdXSD Diagram of BillingActivityInfo_Type in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd (Acord - Property & Casualty/Surety Standards Program)
Collapse XSD Schema Code:
<xsd:complexType name="BillingActivityInfo_Type">
    <xsd:sequence>
        <xsd:element ref="BillingActivityCd" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="MethodPaymentCd" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="BillingActivityDt" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="BillingActivityAmt" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="MinimumDueAmt" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="BillingActivityId" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="DueDt" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="ActivityDesc" minOccurs="0" maxOccurs="1" />
    </xsd:sequence>
    <xsd:attribute name="id" type="ID" />
    <xsd:attribute name="PayorRef" type="IDREF" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
BillingActivityCd nsC:BillingActivityCd 0 1
MethodPaymentCd nsC:MethodPaymentCd 0 1
BillingActivityDt nsC:BillingActivityDt 0 1
BillingActivityAmt nsC:BillingActivityAmt 0 1
MinimumDueAmt nsC:MinimumDueAmt 0 1
BillingActivityId nsC:BillingActivityId 0 1
DueDt nsC:DueDt 0 1
ActivityDesc nsC:ActivityDesc 0 1
Collapse Child Attributes:
Name Type Default Value Use
id nsC:id (Optional)
PayorRef nsC:PayorRef (Optional)
Collapse Derivation Tree:
Collapse References:
nsC:BillingActivityInfo
