Documentation for Acord - Property & Casualty/Surety Standards Program
Definition Type: ComplexType
Name: BlanketInfo_Type
Namespace: http://www.ACORD.org/standards/PC_Surety/ACORD1/xml/
Containing Schema: acord-pcs-v1_16_0-ns-nodoc-codes.xsd
Abstract

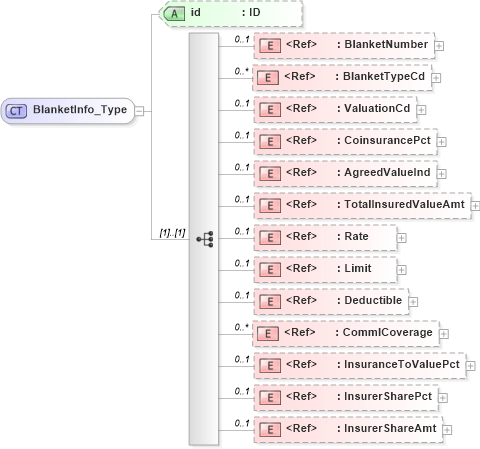

Collapse XSD Schema Diagram:
Drilldown into InsurerShareAmt in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into InsurerSharePct in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into InsuranceToValuePct in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into CommlCoverage in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into Deductible in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into Limit in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into Rate in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into TotalInsuredValueAmt in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into AgreedValueInd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into CoinsurancePct in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into ValuationCd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into BlanketTypeCd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into BlanketNumber in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into id in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsdXSD Diagram of BlanketInfo_Type in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd (Acord - Property & Casualty/Surety Standards Program)
Collapse XSD Schema Code:
<xsd:complexType name="BlanketInfo_Type">
    <xsd:sequence>
        <xsd:element ref="BlanketNumber" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="BlanketTypeCd" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="ValuationCd" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="CoinsurancePct" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="AgreedValueInd" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="TotalInsuredValueAmt" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="Rate" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="Limit" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="Deductible" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="CommlCoverage" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="InsuranceToValuePct" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="InsurerSharePct" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="InsurerShareAmt" minOccurs="0" maxOccurs="1" />
    </xsd:sequence>
    <xsd:attribute name="id" type="ID" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
BlanketNumber nsC:BlanketNumber 0 1
BlanketTypeCd nsC:BlanketTypeCd 0 unbounded
ValuationCd nsC:ValuationCd 0 1
CoinsurancePct nsC:CoinsurancePct 0 1
AgreedValueInd nsC:AgreedValueInd 0 1
TotalInsuredValueAmt nsC:TotalInsuredValueAmt 0 1
Rate nsC:Rate 0 1
Limit nsC:Limit 0 1
Deductible nsC:Deductible 0 1
CommlCoverage nsC:CommlCoverage 0 unbounded
InsuranceToValuePct nsC:InsuranceToValuePct 0 1
InsurerSharePct nsC:InsurerSharePct 0 1
InsurerShareAmt nsC:InsurerShareAmt 0 1
Collapse Child Attributes:
Name Type Default Value Use
id nsC:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsC:BlanketInfo
