Documentation for Acord - Property & Casualty/Surety Standards Program
Definition Type: ComplexType
Name: CancelNonRenewInfo_Type
Namespace: http://www.ACORD.org/standards/PC_Surety/ACORD1/xml/
Containing Schema: acord-pcs-v1_16_0-ns-nodoc-codes.xsd
Abstract

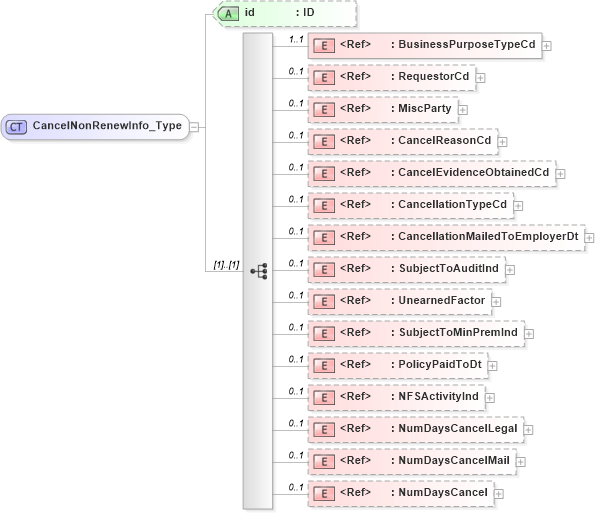

Collapse XSD Schema Diagram:
Drilldown into NumDaysCancel in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into NumDaysCancelMail in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into NumDaysCancelLegal in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into NFSActivityInd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into PolicyPaidToDt in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into SubjectToMinPremInd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into UnearnedFactor in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into SubjectToAuditInd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into CancellationMailedToEmployerDt in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into CancellationTypeCd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into CancelEvidenceObtainedCd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into CancelReasonCd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into MiscParty in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into RequestorCd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into BusinessPurposeTypeCd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into id in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsdXSD Diagram of CancelNonRenewInfo_Type in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd (Acord - Property & Casualty/Surety Standards Program)
Collapse XSD Schema Code:
<xsd:complexType name="CancelNonRenewInfo_Type">
    <xsd:sequence>
        <xsd:element ref="BusinessPurposeTypeCd" minOccurs="1" maxOccurs="1" />
        <xsd:element ref="RequestorCd" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="MiscParty" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="CancelReasonCd" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="CancelEvidenceObtainedCd" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="CancellationTypeCd" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="CancellationMailedToEmployerDt" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="SubjectToAuditInd" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="UnearnedFactor" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="SubjectToMinPremInd" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="PolicyPaidToDt" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="NFSActivityInd" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="NumDaysCancelLegal" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="NumDaysCancelMail" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="NumDaysCancel" minOccurs="0" maxOccurs="1" />
    </xsd:sequence>
    <xsd:attribute name="id" type="ID" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
BusinessPurposeTypeCd nsC:BusinessPurposeTypeCd 1 1
RequestorCd nsC:RequestorCd 0 1
MiscParty nsC:MiscParty 0 1
CancelReasonCd nsC:CancelReasonCd 0 1
CancelEvidenceObtainedCd nsC:CancelEvidenceObtainedCd 0 1
CancellationTypeCd nsC:CancellationTypeCd 0 1
CancellationMailedToEmployerDt nsC:CancellationMailedToEmployerDt 0 1
SubjectToAuditInd nsC:SubjectToAuditInd 0 1
UnearnedFactor nsC:UnearnedFactor 0 1
SubjectToMinPremInd nsC:SubjectToMinPremInd 0 1
PolicyPaidToDt nsC:PolicyPaidToDt 0 1
NFSActivityInd nsC:NFSActivityInd 0 1
NumDaysCancelLegal nsC:NumDaysCancelLegal 0 1
NumDaysCancelMail nsC:NumDaysCancelMail 0 1
NumDaysCancel nsC:NumDaysCancel 0 1
Collapse Child Attributes:
Name Type Default Value Use
id nsC:id (Optional)
Collapse Derivation Tree:
Collapse References:
nsC:CancelNonRenewInfo
