Documentation for Acord - Property & Casualty/Surety Standards Program
Definition Type: ComplexType
Name: ClaimsInjuredInfo_Type
Namespace: http://www.ACORD.org/standards/PC_Surety/ACORD1/xml/
Containing Schema: acord-pcs-v1_16_0-ns-nodoc-codes.xsd
Abstract

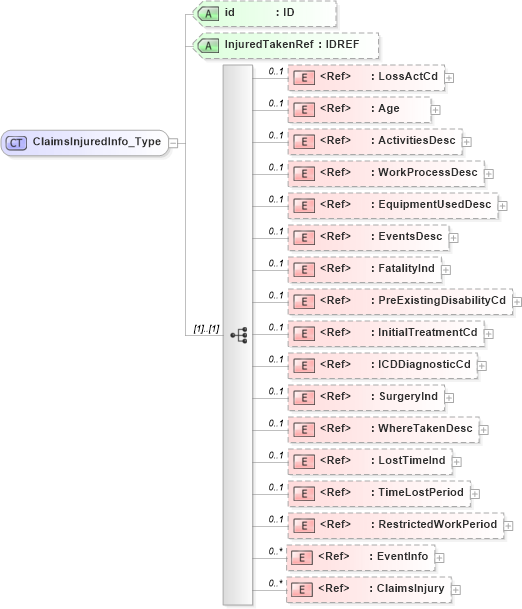

Collapse XSD Schema Diagram:
Drilldown into ClaimsInjury in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into EventInfo in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into RestrictedWorkPeriod in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into TimeLostPeriod in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into LostTimeInd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into WhereTakenDesc in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into SurgeryInd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into ICDDiagnosticCd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into InitialTreatmentCd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into PreExistingDisabilityCd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into FatalityInd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into EventsDesc in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into EquipmentUsedDesc in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into WorkProcessDesc in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into ActivitiesDesc in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into Age in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into LossActCd in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into InjuredTakenRef in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into id in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsdXSD Diagram of ClaimsInjuredInfo_Type in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd (Acord - Property & Casualty/Surety Standards Program)
Collapse XSD Schema Code:
<xsd:complexType name="ClaimsInjuredInfo_Type">
    <xsd:sequence>
        <xsd:element ref="LossActCd" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="Age" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="ActivitiesDesc" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="WorkProcessDesc" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="EquipmentUsedDesc" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="EventsDesc" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="FatalityInd" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="PreExistingDisabilityCd" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="InitialTreatmentCd" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="ICDDiagnosticCd" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="SurgeryInd" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="WhereTakenDesc" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="LostTimeInd" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="TimeLostPeriod" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="RestrictedWorkPeriod" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="EventInfo" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="ClaimsInjury" minOccurs="0" maxOccurs="unbounded" />
    </xsd:sequence>
    <xsd:attribute name="id" type="ID" />
    <xsd:attribute name="InjuredTakenRef" type="IDREF" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
LossActCd nsC:LossActCd 0 1
Age nsC:Age 0 1
ActivitiesDesc nsC:ActivitiesDesc 0 1
WorkProcessDesc nsC:WorkProcessDesc 0 1
EquipmentUsedDesc nsC:EquipmentUsedDesc 0 1
EventsDesc nsC:EventsDesc 0 1
FatalityInd nsC:FatalityInd 0 1
PreExistingDisabilityCd nsC:PreExistingDisabilityCd 0 1
InitialTreatmentCd nsC:InitialTreatmentCd 0 1
ICDDiagnosticCd nsC:ICDDiagnosticCd 0 1
SurgeryInd nsC:SurgeryInd 0 1
WhereTakenDesc nsC:WhereTakenDesc 0 1
LostTimeInd nsC:LostTimeInd 0 1
TimeLostPeriod nsC:TimeLostPeriod 0 1
RestrictedWorkPeriod nsC:RestrictedWorkPeriod 0 1
EventInfo nsC:EventInfo 0 unbounded
ClaimsInjury nsC:ClaimsInjury 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
id nsC:id (Optional)
InjuredTakenRef nsC:InjuredTakenRef (Optional)
Collapse Derivation Tree:
Collapse References:
nsC:ClaimsInjuredInfo
