Documentation for Acord - Property & Casualty/Surety Standards Program
Definition Type: ComplexType
Name: ClaimsParty_Type
Namespace: http://www.ACORD.org/standards/PC_Surety/ACORD1/xml/
Containing Schema: acord-pcs-v1_16_0-ns-nodoc-codes.xsd
Abstract

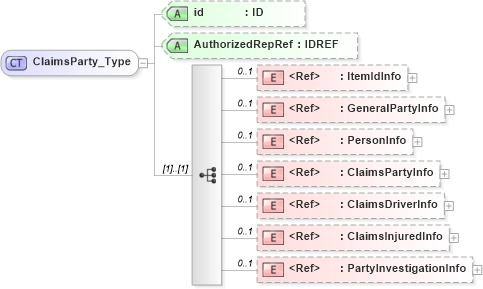

Collapse XSD Schema Diagram:
Drilldown into PartyInvestigationInfo in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into ClaimsInjuredInfo in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into ClaimsDriverInfo in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into ClaimsPartyInfo in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into PersonInfo in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into GeneralPartyInfo in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into ItemIdInfo in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into AuthorizedRepRef in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd Drilldown into id in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsdXSD Diagram of ClaimsParty_Type in schema acord-pcs-v1_16_0-ns-nodoc-codes_xsd (Acord - Property & Casualty/Surety Standards Program)
Collapse XSD Schema Code:
<xsd:complexType name="ClaimsParty_Type">
    <xsd:sequence>
        <xsd:element ref="ItemIdInfo" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="GeneralPartyInfo" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="PersonInfo" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="ClaimsPartyInfo" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="ClaimsDriverInfo" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="ClaimsInjuredInfo" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="PartyInvestigationInfo" minOccurs="0" maxOccurs="1" />
    </xsd:sequence>
    <xsd:attribute name="id" type="ID" />
    <xsd:attribute name="AuthorizedRepRef" type="IDREF" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ItemIdInfo nsC:ItemIdInfo 0 1
GeneralPartyInfo nsC:GeneralPartyInfo 0 1
PersonInfo nsC:PersonInfo 0 1
ClaimsPartyInfo nsC:ClaimsPartyInfo 0 1
ClaimsDriverInfo nsC:ClaimsDriverInfo 0 1
ClaimsInjuredInfo nsC:ClaimsInjuredInfo 0 1
PartyInvestigationInfo nsC:PartyInvestigationInfo 0 1
Collapse Child Attributes:
Name Type Default Value Use
id nsC:id (Optional)
AuthorizedRepRef nsC:AuthorizedRepRef (Optional)
Collapse Derivation Tree:
Collapse References:
nsC:ClaimsParty
